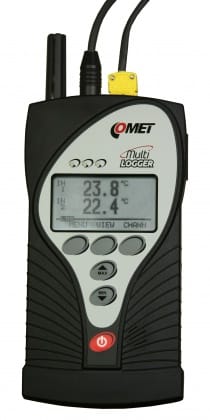

Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

Universal datalogger with 4 inputs. Two inputs for temperature-humidity probes and two inputs for thermocouples K, J, S, B, T, N.
Multilogger can be installed permanently to Ethernet network or work as portable device.
Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its Inputs.

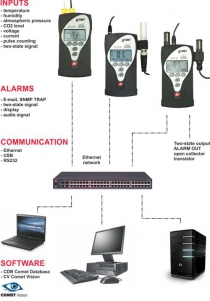

Data logger can be connected to Ethernet. Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.







  • code
    M1220
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +600 °C
Accuracy ±0.2 °C (-200 to +100 °C);
±0.2 % from reading from +100 to +600 °C
Resolution 0.1 °C

TEMPERATURE+HUMIDITY SENSOR - external probe T+RH DIGI

Measuring range according to the connected probe Digi/M
Accuracy according to the connected probe Digi/M
Resolution 0.1 °C

DEW POINT

Measuring range according to the connected probe Digi/M
Accuracy according to the connected probe Digi/M
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple K, N

Measuring range -200 to +1300 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple J

Measuring range -200 to +750 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple S

Measuring range 0 to +1700 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple B

Measuring range 100 to +1800 °C
Accuracy ± 0,3 % from the measured value + 1 °C in the range +300 to +1800 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple T

Measuring range -200 to +400 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C
DC VOLTAGE
Measuring range -60 to +140 mV; -18 to +18 mV
Accuracy ±100 µV; ±20 µV
Resolution 0,1 µV

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C
Channels 4x external temperature probe
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
Recording interval 1s to 24 hours
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Available temperature units degrees Celsius, degrees Fahrenheit
Communication interface Ethernet, USB, RS232
Ethernet communication protocols WWW, SNMPv1, XML, DATALINK
Alarm protocols E-Mail
Power AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)
Battery life 3 - 4 weeks
Protection class IP20
Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
Weight (including batteries) approx. 380 g
Warranty 3 years

Optional accessories and download

Temperature Probes Pt1000

Ambient temperature probe with Pt1000 sensor, 200-80/M

Ambient temperature probe with Pt1000 sensor, 200-80/M

Temperature range: -30 to 80°C
code SN243M
Pt1000TG8/M, temperature probe

Pt1000TG8/M, temperature probe

Temperature range: -80 to 200°C
code SN104M
Pt1000TG8/M, temperature probe, cable 2 m

Pt1000TG8/M, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105M
Pt1000TG8/M, temperature probe, cable 5 m

Pt1000TG8/M, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108M
Pt1000TG8/M, temperature probe, cable 10 m

Pt1000TG8/M, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113M
Pt1000TR050S/M, temperature probe, cable 1 m

Pt1000TR050S/M, temperature probe, cable 1 m

Temperature range: -50 to 350°C
code SN247M
Pt1000TR050S/M, temperature probe, cable 2 m

Pt1000TR050S/M, temperature probe, cable 2 m

Temperature range: -50 to 350°C
code SN248M
Pt1000TR050S/M, temperature probe, cable 5 m

Pt1000TR050S/M, temperature probe, cable 5 m

Temperature range: -50 to 350°C
code SN249M
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector

Temperature range: -50 to 200°C
code SN252M
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254M
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255M
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256M
Pt1000TG7/M, temperature probe

Pt1000TG7/M, temperature probe

Temperature range: -50 to 200°C
code SN164M
Pt1000TG7/M, temperature probe, cable 2 m

Pt1000TG7/M, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165M
Pt1000TG7/M, temperature probe, cable 5 m

Pt1000TG7/M, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166M
Pt1000TG7/M, temperature probe, cable 10 m

Pt1000TG7/M, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167M
2301-220/M, temperature probe, cable 1 m

2301-220/M, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168M
2021-150/M, temperature probe, cable 1 m

2021-150/M, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169M
2034-220/M, temperature probe, cable 1 m

2034-220/M, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175M
2061-200/M, temperature probe, cable 1 m

2061-200/M, temperature probe, cable 1 m

Temperature range: -30 to 200°C
code SN178M
2061-200/M, temperature probe, cable 2 m

2061-200/M, temperature probe, cable 2 m

Temperature range: -30 to 200°C
code SN179M
2061-200/M, temperature probe, cable 5 m

2061-200/M, temperature probe, cable 5 m

Temperature range: -30 to 200°C
code SN180M
2061-200/M, temperature probe, cable 10 m

2061-200/M, temperature probe, cable 10 m

Temperature range: -30 to 200°C
code SN181M
PTS350A-5/M, temperature probe, cable 5 m

PTS350A-5/M, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182M
PTS350A-10/M, temperature probe, cable 10 m

PTS350A-10/M, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183M
Pt1000TGL40/M, temperature probe, cable 1 m

Pt1000TGL40/M, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185M
Pt1000TGL40/M, temperature probe, cable 2 m

Pt1000TGL40/M, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186M
Pt1000TGL40/M, temperature probe, cable 5 m

Pt1000TGL40/M, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187M
Pt1000TGL40/M, temperature probe, cable 10 m

Pt1000TGL40/M, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188M
Pt1000TR160/M, temperature probe, cable 1 m

Pt1000TR160/M, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199M
Pt1000TR160/M, temperature probe, cable 2 m

Pt1000TR160/M, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200M
Pt1000TR160/M, temperature probe, cable 5 m

Pt1000TR160/M, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201M
Pt1000TR160/M, temperature probe, cable 10 m

Pt1000TR160/M, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202M
Pt1000TR160/M, temperature probe, cable 15 m

Pt1000TR160/M, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203M
2091-250/M, Stick-in probe, cable 1 m

2091-250/M, Stick-in probe, cable 1 m

Temperature range: -30 to 200°C
code SN210M
2091-250/M, Stick-in probe, cable 2 m

2091-250/M, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211M
2091-250/M, Stick-in probe, cable 5 m

2091-250/M, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212M
2091-250/M, Stick-in probe, cable 10 m

2091-250/M, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213M
Pt1000TG68/M, temperature probe, cable 2 m

Pt1000TG68/M, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN232M
Pt1000TG68/M, temperature probe, cable 5 m

Pt1000TG68/M, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN233M
Pt1000TG68/M, temperature probe, cable 10 m

Pt1000TG68/M, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN234M
Pt1000TR125/M, temperature probe, cable 1 m

Pt1000TR125/M, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239M
Pt1000TR125/M, temperature probe, cable 2 m

Pt1000TR125/M, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240M
Pt1000TR125/M, temperature probe, cable 5 m

Pt1000TR125/M, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241M
Pt1000TR125/M, temperature probe, cable 10 m

Pt1000TR125/M, temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242M

Temperature/Relative humidity

Digital temperature/humidity probe, for direct insertion

Digital temperature/humidity probe, for direct insertion

Temperature range: -10 to 60°C
code DIGIL/M
Digital temperature/humidity probe, cable 1 m

Digital temperature/humidity probe, cable 1 m

Temperature range: -30 to 105°C
code DIGIL/M-1
Digital temperature/humidity probe, cable 10 m

Digital temperature/humidity probe, cable 10 m

Temperature range: -30 to 105°C
code DIGIL/M-10
Digital temperature/humidity probe, cable 15 m

Digital temperature/humidity probe, cable 15 m

Temperature range: -3 to 105°C
code DIGIL/M-15
Digital temperature/humidity probe, cable 2 m

Digital temperature/humidity probe, cable 2 m

Temperature range: -30 to 105°C
code DIGIL/M-2
Digital temperature/humidity probe, cable 5 m

Digital temperature/humidity probe, cable 5 m

Temperature range: -30 to 105°C
code DIGIL/M-5
Digital temperature/humidity probe

Digital temperature/humidity probe

Temperature range: -10 to 60°C
code DIGIS/M
Digital temperature/humidity probe, cable 1 m

Digital temperature/humidity probe, cable 1 m

Temperature range: -10 to 60°C
code DIGIS/M-1
Digital temperature/humidity probe, cable 10 m

Digital temperature/humidity probe, cable 10 m

Temperature range: -10 to 60°C
code DIGIS/M-10
Digital temperature/humidity probe, cable 15 m

Digital temperature/humidity probe, cable 15 m

Temperature range: -10 to 60°C
code DIGIS/M-15
Digital temperature/humidity probe, cable 2 m

Digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIS/M-2
Digital temperature/humidity probe, cable 5 m

Digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIS/M-5
Ultra thin digital temperature/humidity probe

Ultra thin digital temperature/humidity probe

Temperature range: -10 to 60°C
code DIGIH/M-1
Ultra thin digital temperature/humidity probe, cable 2 m

Ultra thin digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIH/M-2
Ultra thin digital temperature/humidity probe, cable 5 m

Ultra thin digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIH/M-5

Temperature range: -10 to 60°C
code

Thermocouple probes

CP500 thermocouple K surface probe

CP500 thermocouple K surface probe

Temperature range: -65 to 500°C
code CP500
CZ550 thermocouple K surface probe

CZ550 thermocouple K surface probe

Temperature range: -65 to 550°C
code CZ550
CZ900 thermocouple K needle probe

CZ900 thermocouple K needle probe

Temperature range: -65 to 1000°C
code CZ900
GD1250 thermocouple "K" wire probe

GD1250 thermocouple "K" wire probe

Temperature range: -65 to 980°C
code GD1250-1
GD1250 thermocouple "K" wire probe 2m

GD1250 thermocouple "K" wire probe 2m

Temperature range: -65 to 980°C
code GD1250-2
GD1250 thermocouple "K" wire probe 3m

GD1250 thermocouple "K" wire probe 3m

Temperature range: -65 to 980°C
code GD1250-3
GD1250 thermocouple "K" wire probe 4m

GD1250 thermocouple "K" wire probe 4m

Temperature range: -65 to 980°C
code GD1250-4
GD260 thermocouple "K" wire probe

GD260 thermocouple "K" wire probe

Temperature range: -65 to 260°C
code GD260-1
GD260 thermocouple "K" wire probe 2m

GD260 thermocouple "K" wire probe 2m

Temperature range: -65 to 260°C
code GD260-2
GD260 thermocouple "K" wire probe 3m

GD260 thermocouple "K" wire probe 3m

Temperature range: -65 to 260°C
code GD260-3
GD260 thermocouple "K" wire probe 4m

GD260 thermocouple "K" wire probe 4m

Temperature range: -65 to 260°C
code GD260-4
GD700 thermocouple "K" wire probe

GD700 thermocouple "K" wire probe

Temperature range: -65 to 700°C
code GD700-1
GD700 thermocouple "K" wire probe 2m

GD700 thermocouple "K" wire probe 2m

Temperature range: -65 to 700°C
code GD700-2
GD700 thermocouple "K" wire probe 3m

GD700 thermocouple "K" wire probe 3m

Temperature range: -65 to 700°C
code GD700-3
GD700 thermocouple "K" wire probe 4m

GD700 thermocouple "K" wire probe 4m

Temperature range: -65 to 700°C
code GD700-4
GT1150 thermocouple "K" insertion probe

GT1150 thermocouple "K" insertion probe

Temperature range: -50 to 1150°C
code GT1150

Other accessories

Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009
COMETEO Professional Universal Multi-plate Radiation Shield for Weather Sensors

COMETEO Professional Universal Multi-plate Radiation Shield for Weather Sensors

code F8110
Plastic transport case for Multilogger

Plastic transport case for Multilogger

code BM511
External audio unit for MSxx and Multilogger

External audio unit for MSxx and Multilogger

code MP026
300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI
TL-POE10R - PoE splitter

TL-POE10R - PoE splitter

code TL-POE
Adapter for easy connection U/I signals to Multilogger

Adapter for easy connection U/I signals to Multilogger

code MLP006
Holder for mounting the Multilogger on magnetic surfaces

Holder for mounting the Multilogger on magnetic surfaces

code MLP003
Wall holder for the Multilogger

Wall holder for the Multilogger

code MLP002
Watertight case with cable glands for Multilogger, transparent lid

Watertight case with cable glands for Multilogger, transparent lid

code MLP007

Monitoring software

COMET Vision - Software for Dataloggers and Multiloggers

COMET Vision - Software for Dataloggers and Multiloggers

code CV
Comet Database

Comet Database

code CDB

Software

download-icon Comet Vision Software (2.1.7367.23596 dbapi 19.0)
15.08 MB
download-icon Comet Database One Click Installer (19.0-III)
324.96 MB
download-icon Database Viewer 3.12.0.0 dbapi 19.0
22.09 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Manuals

download-icon Instruction Manual
2.52 MB
download-icon Quick Start Manual
1,009.40 KB
download-icon Declaration of Conformity
98.67 KB
download-icon MIB
540.52 KB

Catalogs

download-icon CATALOG - Multilogger
2.03 MB

Related products

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

code F8100
COMETEO Professional Radiation Shield for Weather Sensors, actively ventilated with built-in fan

COMETEO Professional Radiation Shield for Weather Sensors, actively ventilated with built-in fan

code F8200
Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

code M1140
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

code M1200
Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

code M1320
Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

code M1321
Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

code M1322
Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

code M1323
Ethernet Multilogger - universal datalogger with 4 inputs

Ethernet Multilogger - universal datalogger with 4 inputs

code M1300
Multilogger - thermo-hygro-CO2 meter with four inputs, up to 50 000ppm CO2

Multilogger - thermo-hygro-CO2 meter with four inputs, up to 50 000ppm CO2

code M1440

Multilogger Demo
