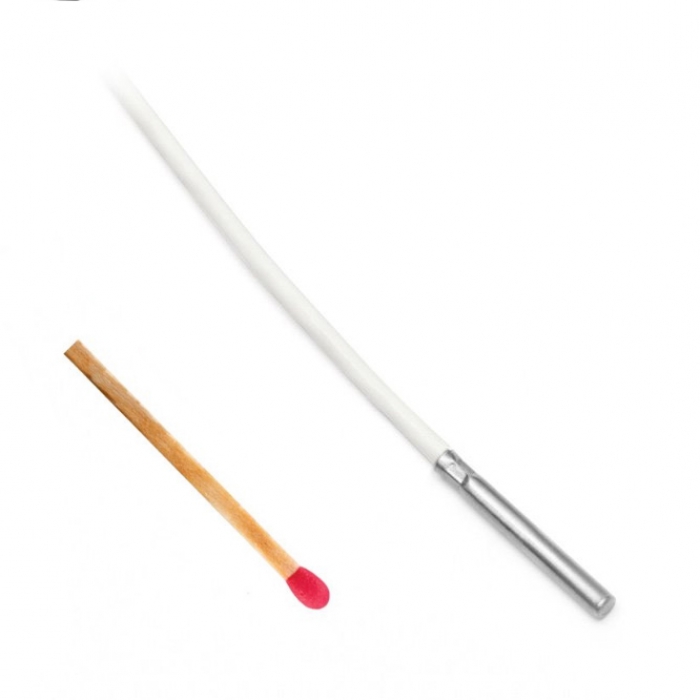

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 2 meters

Probes are designed for contact measurement of the temperature of gaseous and liquid or solid substances.

Ultra thin 3 mm diameter of the case ensures fast response to changes in temperature. Used type of lead-in cable has teflon insulation with shielding. The sensors are designed for universal use.
The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable. The sensors are also designed for use in a chemically non-aggressive environment.

  • code
    SN254M

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -50 to +200 °C
Accuracy ± (0.15 + 0.002 t) at °C
Accuracy class A
Time response t0.5 to 3 s
t0.9 to 9 s
Type of sensing element Pt1000
Temperature coefficient 3850 ppm / °C

GENERAL TECHNICAL DATA

Wire connection 2-wire connection
Material of the case stainless steel DIN 1.4301

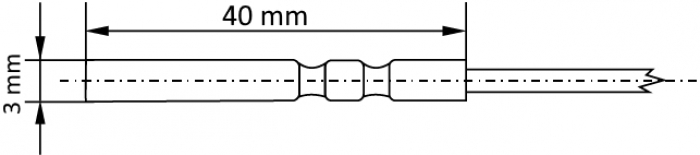

Dimensions of the case length 40 mm;
diameter 3 mm
Lead-in cable teflon shielded (white color)
Length of lead-in cable 2 meters
Connector MiniDin
IP protection IP67
Warranty 30 months
