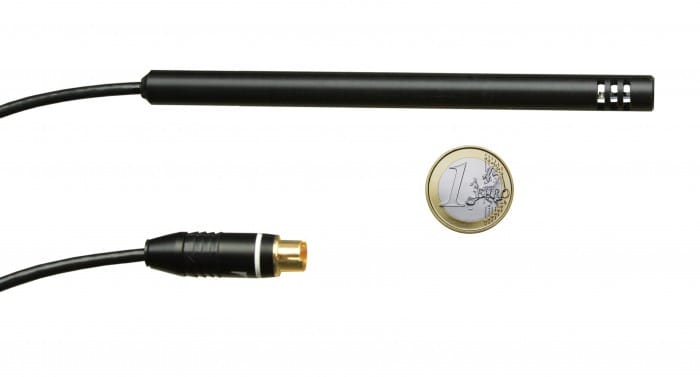

Ultra thin digital temperature/humidity probe

Digital probe with connector MiniDIN.

Ultra thin temperature humidity probe with minimized diameter 11 mm.

The probe is supplied with a calibration certificate.
The probe is interchangeable without calibration to a specific device and regardless of the length of the cable.

Optionally also available with cable of various lengths. For other cable lengths use the selector.

  • code
    DIGIH/M-1

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -10 to +60 °C
Accuracy ±0.4 °C
Response time t90 < 3 min, temperature step 20 °C, air flow 1 m/s

HUMIDITY SENSOR

Measuring range 0 to 100 % RV
Accuracy ±1.8 %RV in the range of 0 to 90 % RH at 23 °C
Response time t90 < 10 s (humidity step 60 %RH, constant temperature)
Hysteresis ±1 % RV
Linearity ±1 % RV

DEW POINT

Measuring range -60 to +60 °C
Accuracy see the manual

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C
Protection class IP30

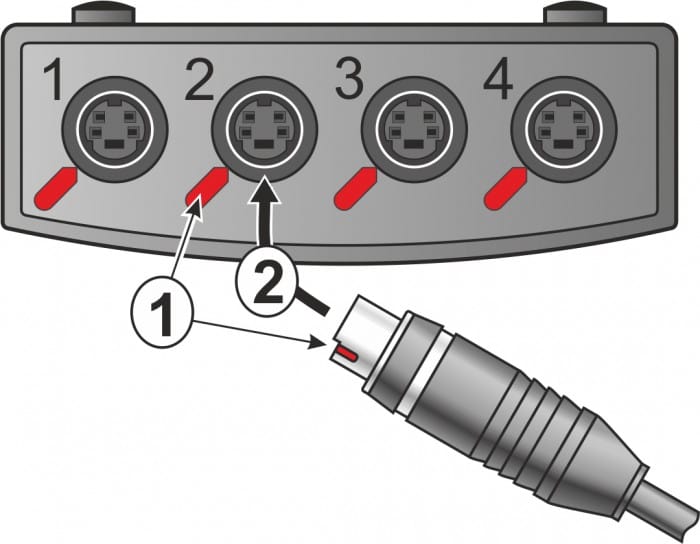

Connector MiniDin

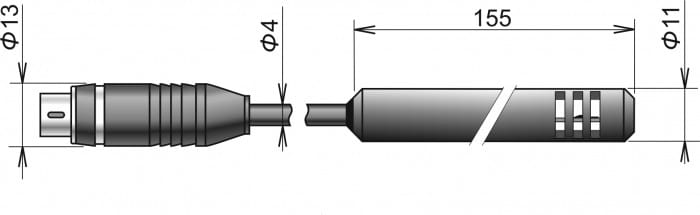

Dimensions (without cable) 155 x 11 mm
Cable length 1 m, 2 m or 5 m
Weight cca 55 g
Warranty 3 years
