Web Sensor - remote thermometer hygrometer with Ethernet interface

Ambient temperature, relative humidity t-line Web sensor. Remote alarm.

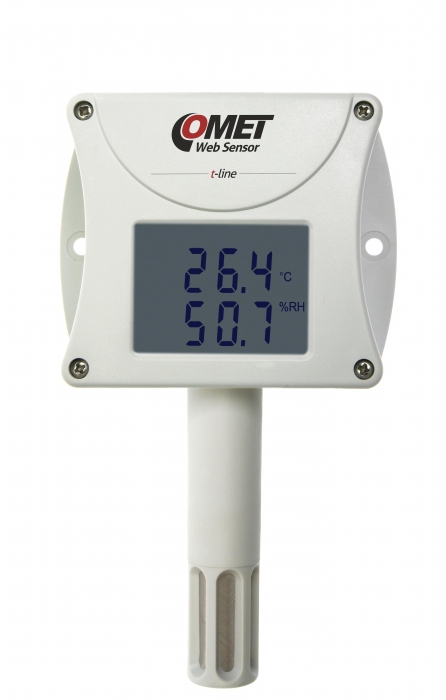

Web Sensor with built-in relative humidity and temperature sensors.

High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Dual line LCD is an advantage. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.







  • code
    T3510
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +80 °C
Accuracy ±0.6 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels internal temperature and humidity sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output Ethernet
Range of humidity sensor temperature compensation all temperature range
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP30
Dimensions 88,5 x 147,5 x 39,5 mm; stem length 75 mm
Weight approx. 155 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● communication protocols SNMP, Modbus TCP, SOAP, XML

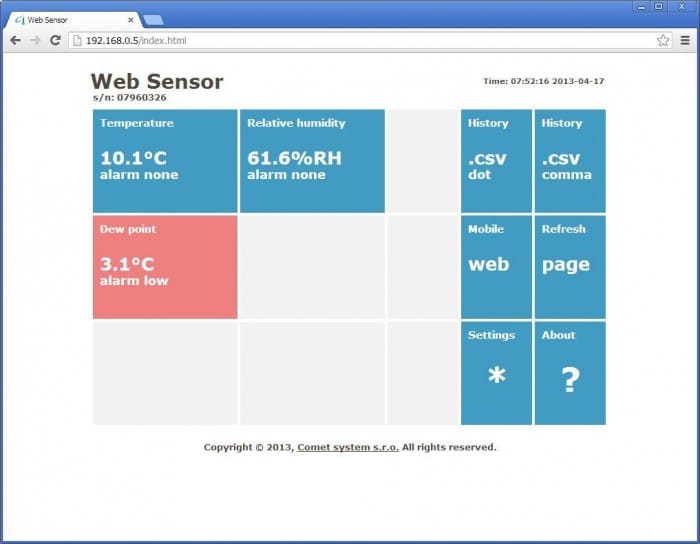

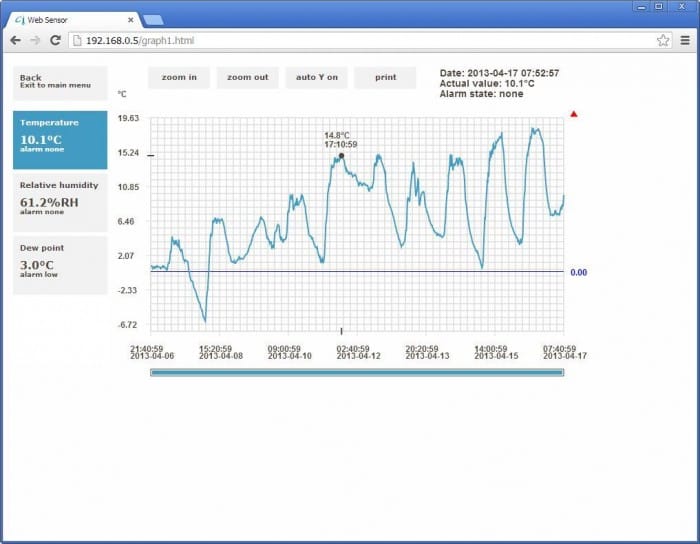

● webserver to display current and recorded values

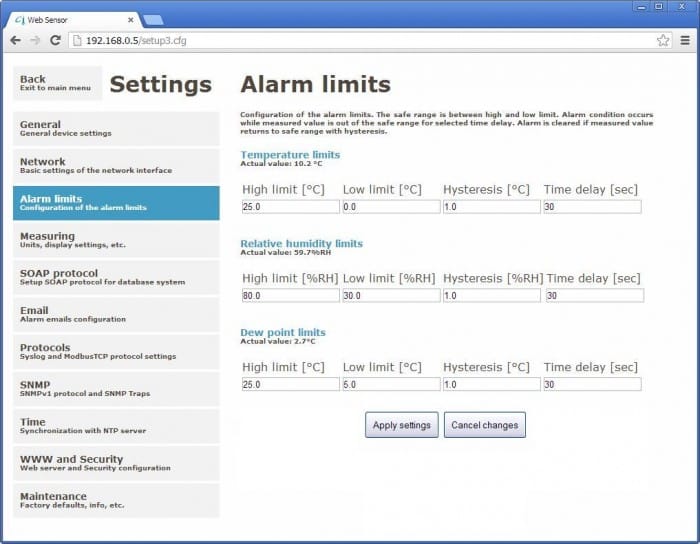

● alarm indication via email
● selected models with PoE

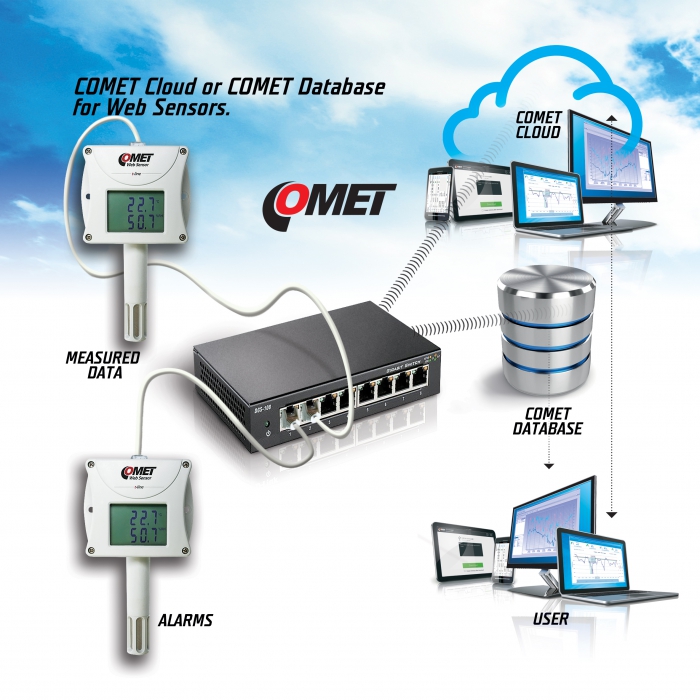

● data analysis in COMET Database software

Záruka 3 roky Kalibrační listCOMET Database Teplotní čidlo Teplotní čidlo Teplotní čidlo Tlakové čidlo Rosný bod Dvouřádkový LCD displej Ethernetové rozhraní

Power over Ethernet - PoE WWW server WWW server Historie uložených hodnot Historické grafy E-mail Export historických dat do CSV Modbus TCP protokol Aktuální hodnoty pomocí XML SNMP protokol

SNMP Trap SOAP Protokol Syslog protokol SNTP protokol - časová synchronizace Paměť MIN/MAX hodnot


Optional accessories and download

ac/dc adapter 230Vac to 12Vdc/0.5A, EU

ac/dc adapter 230Vac to 12Vdc/0.5A, EU

code A1515eu
ac/dc adapter 230Vac to 12Vdc/0.5A, UK

ac/dc adapter 230Vac to 12Vdc/0.5A, UK

code A1515uk
ac/dc adapter 230Vac to 12Vdc/0.5A, US

ac/dc adapter 230Vac to 12Vdc/0.5A, US

code A1515us

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W
TL-POE10R - PoE splitter

TL-POE10R - PoE splitter

code TL-POE

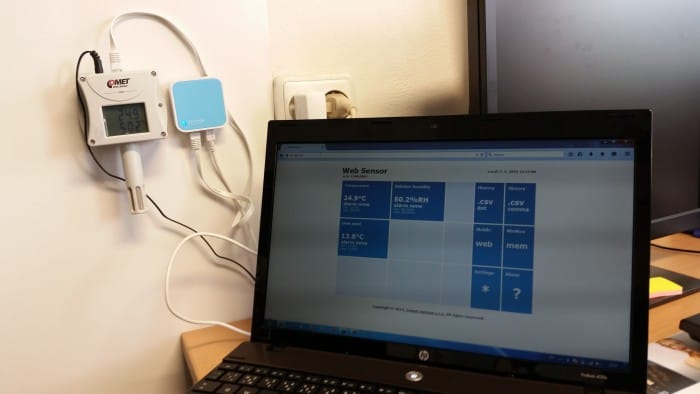

300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI

Sensor holder for mounting to rack 19"

Sensor holder for mounting to rack 19"

code MP046

sintered bronze sensor cover

sintered bronze sensor cover

code F0000
PTFE sensor protection, white

PTFE sensor protection, white

code F5300

COMET Database

COMET Database

code CDB
COMET Cloud

COMET Cloud

code cloud
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046

Software

download-icon Comet Database One Click Installer (20.2-I)
327.96 MB
download-icon Database Viewer 3.18.0.0 dbapi 20.2
24.26 MB
download-icon TSensor (3-4-4-0)
2.70 MB
download-icon Sensor Reader (2-0-7-0)
2.78 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon 3D model T3510
1.36 MB
download-icon Terms and Conditions COMET System s.r.o.
129.08 KB

Manuals

download-icon Instruction Manual
1.59 MB
download-icon Quick Start Manual
941.49 KB
download-icon Declaration of Conformity
61.23 KB
download-icon COMET Cloud security
284.19 KB
download-icon How to add WebSensor to COMET Cloud
509.85 KB
download-icon MIB
572.90 KB

Catalogs

download-icon CATALOG - WebSensor with Ethernet output
4.06 MB
download-icon DATASHEET - WebSensor with Ethernet output
3.62 MB
