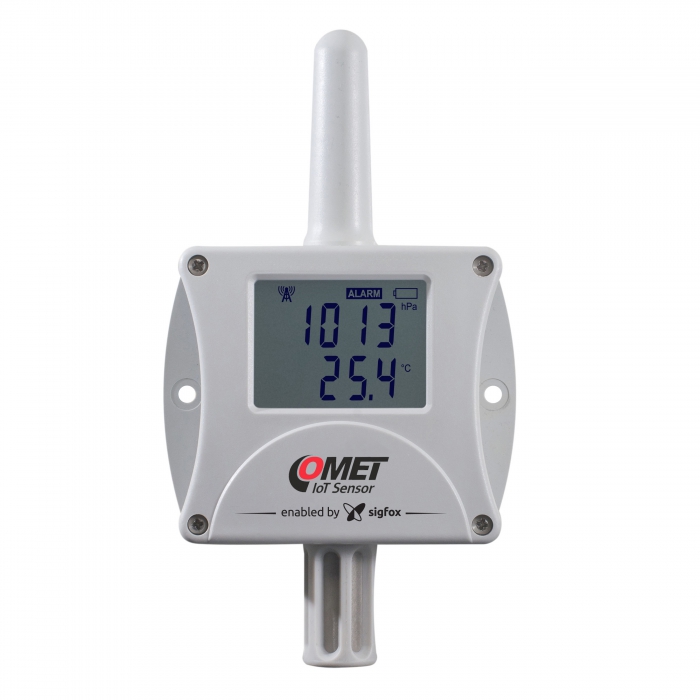

Wireless thermometer, hygrometer barometer, síť Sigfox IoT

Wireless sensor measures temperature, humidity and pressure from built-in internal sensors. It features a simple, compact design and is positioned directly in the measured area.

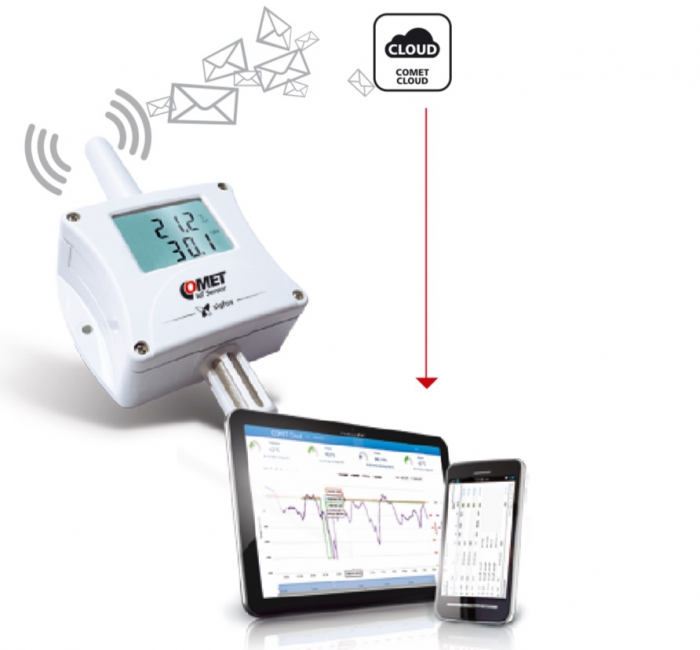

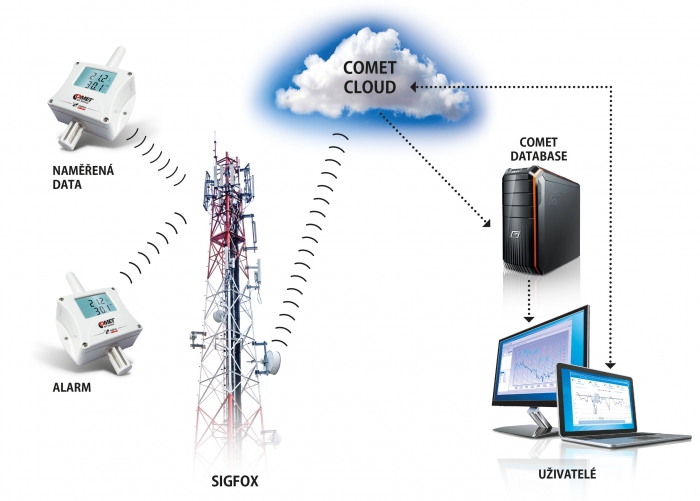

Measured values are displayed on the display and are regularly sent, in an adjustable time interval from 10 min to 24 h, by radio transmission in Sigfox to COMET Cloud. After  the emergence  of  a  new  alarm  (or  the  extinction  of  an  alarm  in progress),  an  extraordinary  alarm  message  is  sent  at  the  latest  within 10 minutes.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

Radio configuration zone RC1. More information about Sigfox Radio Configurations (RC).
Check the Sigfox coverage in your region.

  • code
    W7810
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
Atmospheric pressure

TEMPERATURE SENSOR

Measuring range -30 to +60 °C
Accuracy ±0.4 °C
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 10 minutes

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±1.8 % RH from 0 to 90 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +60 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR SENSOR

Measuring range 600 to 1100 hPa
Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels internal sensor of temperature, humidity sensor and atmospheric pressure
Message transmission interval adjustable 10 minutes, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours
Alarm message sending interval 10 minutes
Operating frequency 868 MHz
Maximum transmission power 25mW
Sigfox radiation class 0U
Radio configuration zone RC1 (operation is possible in Europe, Iran, Oman and South Africa)
Typical range of transmitter 50 km in the field, 3 km in the city
Power Lithium battery 3.6 V, AA size
Protection class IP65

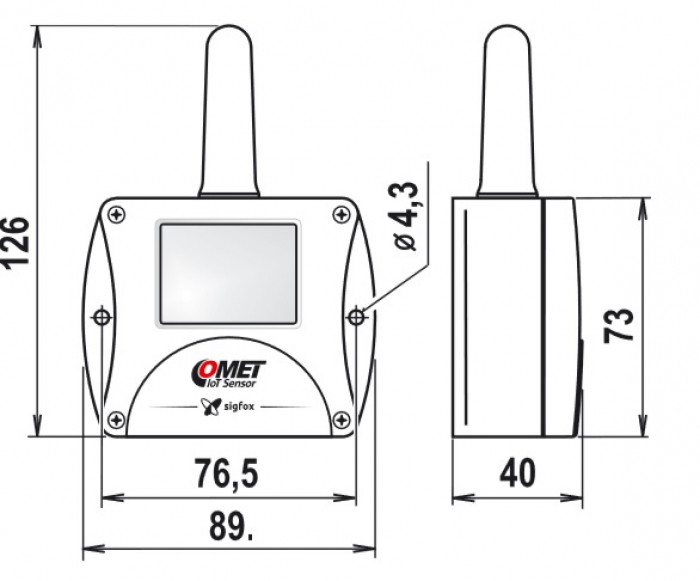

Dimensions 126 x 89 x 40mm
Weight (including batteries) 150g
Warranty 3 years

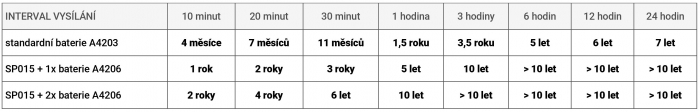

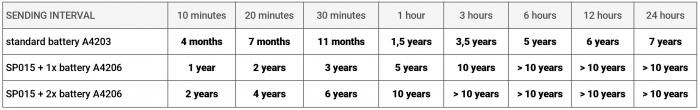

Battery lifetime

Sending interval 10 minutes 20 minutes 30 minutes 1 hour 3 hours 6 hours 12 hours 24 hours
lithium battery A4203 - 2200mAh 4 months 7 months 11 months 1,5 years 3,5 years 5 years 6 years 7 years
battery holder (SP015) + 1x lithium battery A4206 - 8500mAh 1 year 2 years 3 years 5 years 10 years > 10 years > 10 years > 10 years
battery holder (SP015) + 2x lithium battery A4206 - 8500mAh 2 years 4 years 6 years 10 years > 10 years > 10 years > 10 years > 10 years
Download

Optional accessories and download

Lithium battery 3,6V/AA

Lithium battery 3,6V/AA

code A4203
Lithium battery 3,6V/C

Lithium battery 3,6V/C

code A4206
Adapter for external supply of IoT sensor with radio output to Sigfox network

Adapter for external supply of IoT sensor with radio output to Sigfox network

code SP014
Holder for 3.6 V lithium battery

Holder for 3.6 V lithium battery

code SP015
Holder for 3.6 V lithium battery with magnets

Holder for 3.6 V lithium battery with magnets

code SP015M

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Accredited atmospheric pressure calibration

Accredited atmospheric pressure calibration

code SLU006

Sigfox Access Station Micro

Sigfox Access Station Micro

code SMBS-T4
cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003

Holder for Sigfox sensors

Holder for Sigfox sensors

code SP017
Holder for mounting the COMET Transmitter on magnetic surfaces

Holder for mounting the COMET Transmitter on magnetic surfaces

code SP102

sintered bronze sensor cover

sintered bronze sensor cover

code F0000
PTFE sensor protection, white

PTFE sensor protection, white

code F5300

COMET Cloud

COMET Cloud

code cloud

code cloud_app

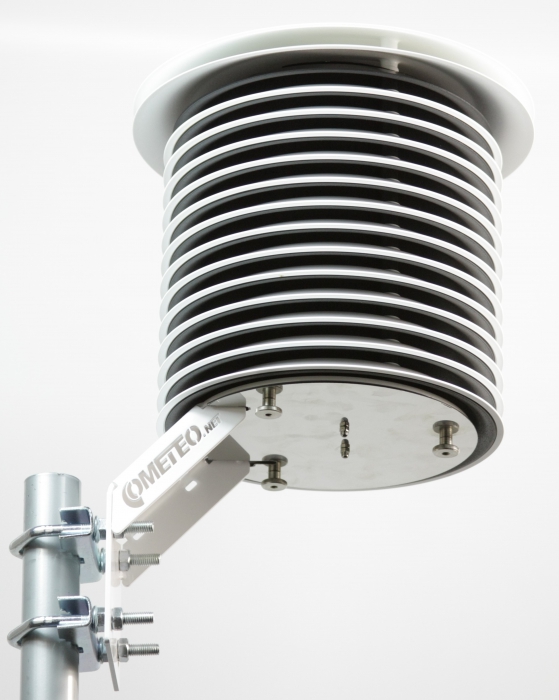

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors
