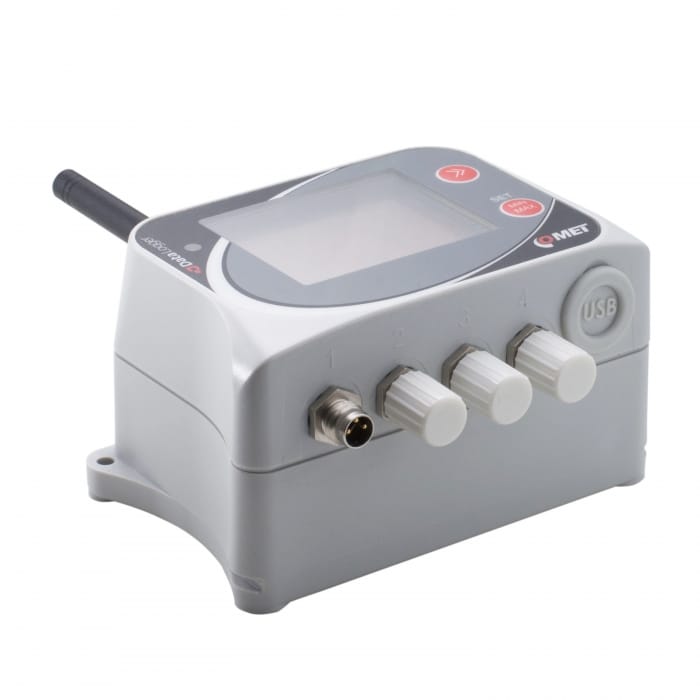

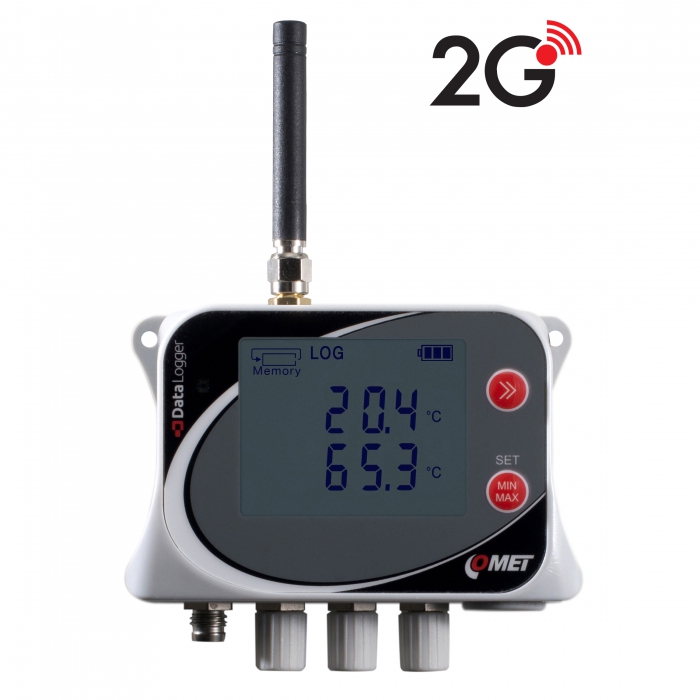

IoT Wireless Temperature Datalogger for 4 external probes, with built-in 2G modem

GSM Datalogger is designed to record temperature from four external Pt1000 probes. In case of exceeded set limits, SMS and JSON messages can be sent via GPRS data connection. Measured values can be sent to the internet storage COMET Cloud, which is a complete monitoring, alarm and analysis system.

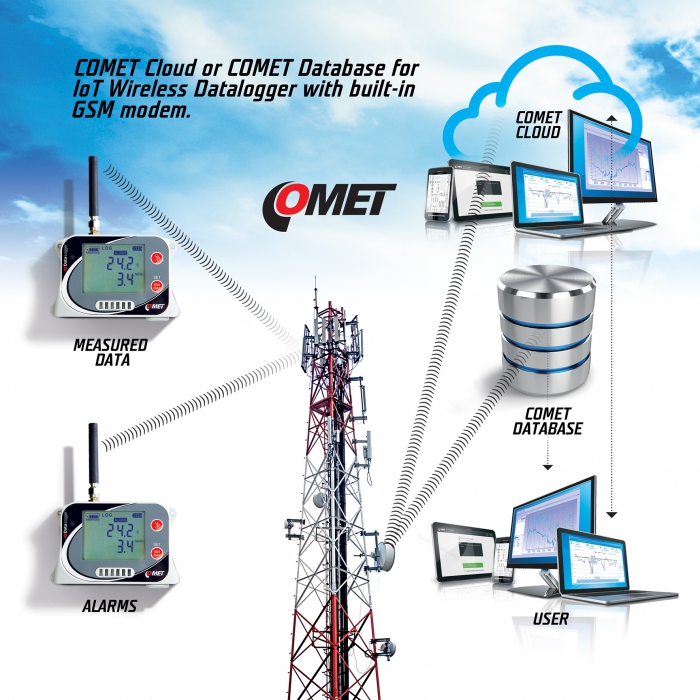

It is also possible to set the regular sending of JSON messages to COMET Database, the sending interval is adjustable. Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

  • code
    U0141M
  • Warranty
    3 years

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +260 °C
Accuracy ±0.2°C; ±0,2 % of the measurement value in a range of +100 to +260 °C
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) according to the connected probe

GSM MODEM PARAMETERS

Quad-band 850/900/1800/1900MHz
Compliant to GSM Phase2/2+
GPRS GPRS mobile station class B
Class 4 2W @ 850/900MHz
Class 1 1W @ 1800/1900MHz

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels 4x external temperature probe
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval to the internal memory adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud from 5 minutes
Interval for measuring and evaluating alarms adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class IP67
Dimensions 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
Weight (including batteries) approx. 270 g
Warranty 3 years

Features

Applications:

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Monitorování v průběhu přepravy

Goods transport - Complete temperature monitoring during transport of pharmaceuticals, foodstuffs, flowers, ...

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

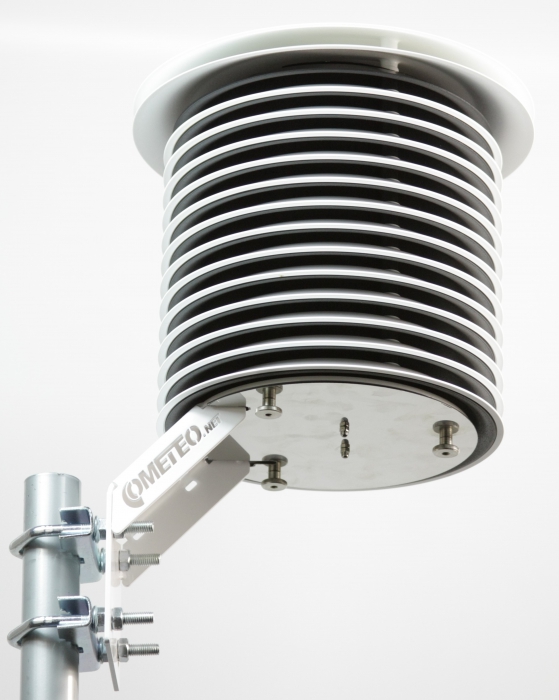

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Automatizace budov a HVAC

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Features description:

* the features may vary depending on the device type
● accurate measurement of temperature, humidity, dew point, events,
● nonvolatile memory for 500 000 records
● indication of alarm via SMS, 3-colours LEDs
● easy to use software for data analysis on PC
● communication interfaces - USB-C snd GSM modem
● rugged design
● long battery life up to 6 years
● logger deployment down to -40°C

Warranty 3 years Traceable calibration certificate COMET Database Data report Datalogger Temperature sensor Humidity sensorTwo-state inputs2 line LCDInternal memory

Alarm SMSAlarmWirelessBattery powerRecheargeable batteryIP protection



Optional accessories and download

Pt1000TG8/E, temperature probe

Pt1000TG8/E, temperature probe

Temperature range: -80 to 200°C
code SN104E
Pt1000TG8/E, temperature probe, cable 2 m

Pt1000TG8/E, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105E
Pt1000TG8/E, temperature probe, cable 5 m

Pt1000TG8/E, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108E
Pt1000TG8/E, temperature probe, cable 10 m

Pt1000TG8/E, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113E
Pt1000TG7/E, temperature probe

Pt1000TG7/E, temperature probe

Temperature range: -50 to 200°C
code SN164E
Pt1000TG7/E, temperature probe, cable 2 m

Pt1000TG7/E, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165E
Pt1000TG7/E, temperature probe, cable 5 m

Pt1000TG7/E, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166E
Pt1000TG7/E, temperature probe, cable 10 m

Pt1000TG7/E, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167E
2301-220/E, temperature probe, cable 1 m

2301-220/E, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168E
2021-150/E, temperature probe, cable 1 m

2021-150/E, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169E
PTS350A-2/0, temperature probe, cable 2 m

PTS350A-2/0, temperature probe, cable 2 m

Temperature range: -30 to 130°C
code SN170E
Ambient temperature probe, 200-80/E

Ambient temperature probe, 200-80/E

Temperature range: -30 to 80°C
code SN171
2034-220/E, temperature probe, cable 1 m

2034-220/E, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175E
2061-200/E, temperature probe, cable 1 m

2061-200/E, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178E
2061-200/E, temperature probe, cable 2 m

2061-200/E, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179E
2061-200/E, temperature probe, cable 5 m

2061-200/E, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180E
2061-200/E, temperature probe, cable 10 m

2061-200/E, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181E
PTS350A-5/E, temperature probe, cable 5 m

PTS350A-5/E, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182E
PTS350A-10/E, temperature probe, cable 10 m

PTS350A-10/E, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183E
Pt1000TGL40/E, temperature probe, cable 1 m

Pt1000TGL40/E, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185E
Pt1000TGL40/E, temperature probe, cable 2 m

Pt1000TGL40/E, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186E
Pt1000TGL40/E, temperature probe, cable 5 m

Pt1000TGL40/E, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187E
Pt1000TGL40/E, temperature probe, cable 10 m

Pt1000TGL40/E, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188E
Pt1000TR160/E, temperature probe, cable 1 m

Pt1000TR160/E, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199E
Pt1000TR160/E, temperature probe, cable 2 m

Pt1000TR160/E, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200E
Pt1000TR160/E, temperature probe, cable 5 m

Pt1000TR160/E, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201E
Pt1000TR160/E, temperature probe, cable 10 m

Pt1000TR160/E, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202E
Pt1000TR160/E, temperature probe, cable 15 m

Pt1000TR160/E, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203E
Pt1000TR160/E, temperature probe, cable 20 m

Pt1000TR160/E, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204E
2091-250/E, Stick-in probe, cable 1 m

2091-250/E, Stick-in probe, cable 1 m

Temperature range: -50 to 250°C
code SN210E
2091-250/E, Stick-in probe, cable 2 m

2091-250/E, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211E
2091-250/E, Stick-in probe, cable 5 m

2091-250/E, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212E
2091-250/E, Stick-in probe, cable 10 m

2091-250/E, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213E
Pt1000TG68/E, temperature probe, cable 2 m

Pt1000TG68/E, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN232E
Pt1000TG68/E, temperature probe, cable 5 m

Pt1000TG68/E, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN233E
Pt1000TG68/E, temperature probe, cable 10 m

Pt1000TG68/E, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN234E

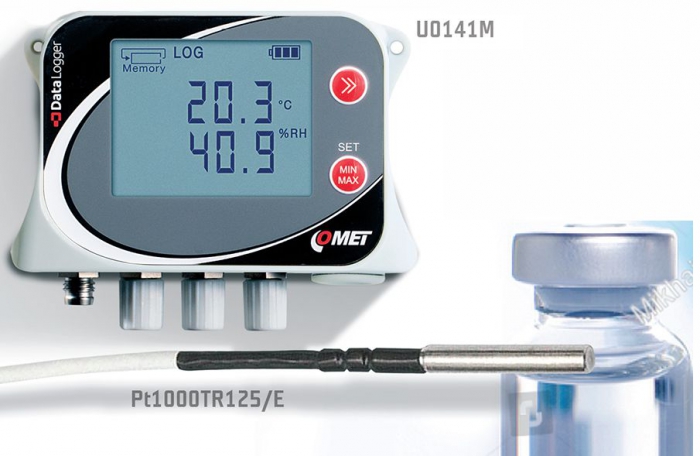

Pt1000TR125/E, cryogenic temperature probe, cable 1 m

Pt1000TR125/E, cryogenic temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239E
Pt1000TR125/E, cryogenic temperature probe, cable 2 m

Pt1000TR125/E, cryogenic temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240E
Pt1000TR125/E, cryogenic temperature probe, cable 5 m

Pt1000TR125/E, cryogenic temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241E
Pt1000TR125/E, cryogenic temperature probe, cable 10 m

Pt1000TR125/E, cryogenic temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242E
Pt1000TR050S/E, temperature probe, cable 1 m

Pt1000TR050S/E, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/E, temperature probe, cable 2 m

Pt1000TR050S/E, temperature probe, cable 2 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/E, temperature probe, cable 5 m

Pt1000TR050S/E, temperature probe, cable 5 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Temperature range: -50 to 200°C
code SN252E
Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270E
Pt1000TR050M/E, temperature probe, cable 2 m

Pt1000TR050M/E, temperature probe, cable 2 m

Temperature range: -50 to 400°C
code SN271E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C
code SN273E

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

code A1879eu
AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

code A1879uk
AC/DC adapter 230Vac to 5Vdc/2.1 A, US

AC/DC adapter 230Vac to 5Vdc/2.1 A, US

code A1879us
Accupack A8205 for dataloggers "U"

Accupack A8205 for dataloggers "U"

code A8205

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053

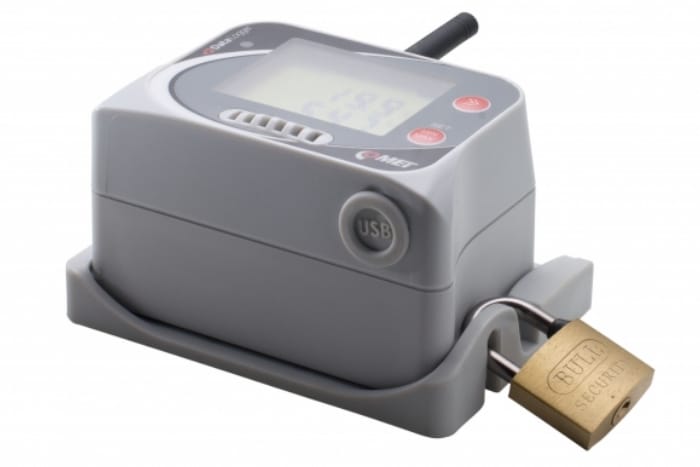

wall holder for datalogger - kopie

wall holder for datalogger - kopie

code LP100
Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

code LP103

COMET Database

COMET Database

code CDB
COMET Cloud

COMET Cloud

code cloud

code cloud_app
COMET Vision - Software for Dataloggers and Multiloggers

COMET Vision - Software for Dataloggers and Multiloggers

code CV
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

code F8000

code LP105

Software

download-icon Comet Vision Software (2.3.8801.28020 dbapi 21.1)
16.23 MB
download-icon Comet Database One Click Installer (21.1-II)
487.31 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
3.29 MB
download-icon Quick Start Manual
958.40 KB
download-icon Safety Information
335.90 KB
download-icon Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
427.80 KB
download-icon Declaration of Conformity
96.91 KB

Catalogs

download-icon CATALOG - Dataloggers
3.57 MB
download-icon CATALOG - GSM loggers
3.00 MB

Related products

COMET Cloud

COMET Cloud

code cloud
COMET Database

COMET Database

code CDB
COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

code F8000
IoT Wireless Temperature Datalogger with built-in sensor and 2G modem

IoT Wireless Temperature Datalogger with built-in sensor and 2G modem

code U0110M
IoT Wireless Temperature Datalogger for 2 external probes, with two two-state inputs, built-in 2G modem

IoT Wireless Temperature Datalogger for 2 external probes, with two two-state inputs, built-in 2G modem

code U0843M
IoT Wireless Temperature and Relative Humidity Datalogger, with built-in 2G modem

IoT Wireless Temperature and Relative Humidity Datalogger, with built-in 2G modem

code U3120M
IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in 2G modem

IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in 2G modem

code U3121M
IoT Wireless Temperature and Relative Humidity Datalogger with connector for other temperature probe, with built-in 2G modem

IoT Wireless Temperature and Relative Humidity Datalogger with connector for other temperature probe, with built-in 2G modem

code U3631M
IoT Wireless Temperature, Relative Humidity, CO2 and atmospheric pressure Datalogger with built-in 2G modem

IoT Wireless Temperature, Relative Humidity, CO2 and atmospheric pressure Datalogger with built-in 2G modem

code U4440M
IoT Wireless Datalogger for 3 current inputs 0-20mA and 1 two-state input, with built-in 2G modem

IoT Wireless Datalogger for 3 current inputs 0-20mA and 1 two-state input, with built-in 2G modem

code U6841M
IoT Wireless Four channel Datalogger with pulse and two-state inputs, with built-in 2G modem

IoT Wireless Four channel Datalogger with pulse and two-state inputs, with built-in 2G modem

code U7844M
IoT Wireless CO2 datalogger with built-in sensor, 2G modem

IoT Wireless CO2 datalogger with built-in sensor, 2G modem

code U8410M
Wireless thermometer, hygrometer barometer, síť Sigfox IoT

Wireless thermometer, hygrometer barometer, síť Sigfox IoT

code W7810
