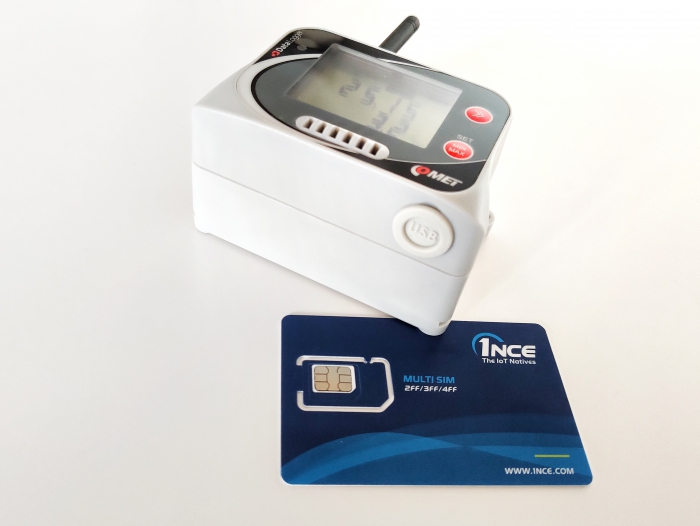

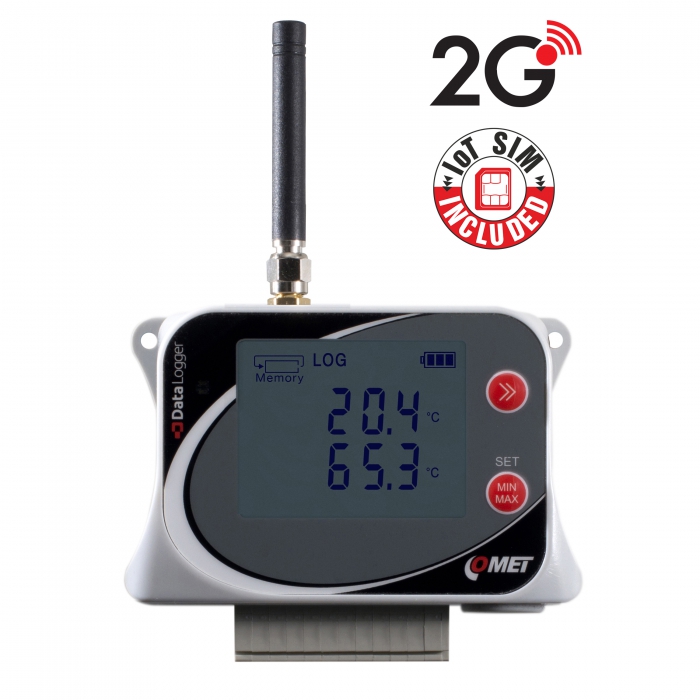

IoT Wireless Temperature Datalogger for 4 external probes, with built-in GSM modem and Flat Rate SIM Card

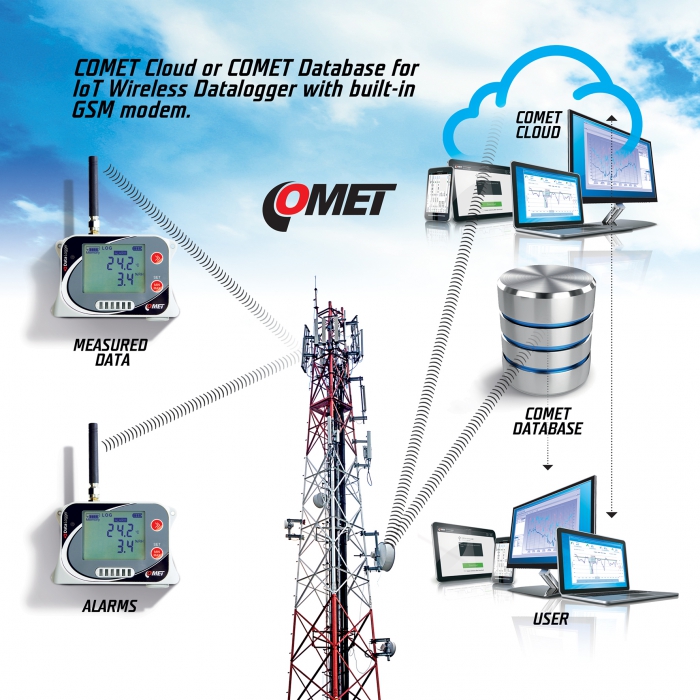

IoT Wireless Datalogger kit with built-in GSM modem and Flat Rate SIM Card allows the instant connection to the COMET Cloud.
GSM Datalogger is designed to record temperature from four external Pt1000 probes connected to the terminal board. In case of exceeded set limits e-mail is sent, SMS and JSON messages can be sent via GPRS data connection.
Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.
GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
-
codeU0141TMsim
-
Warranty3 years
Technical data
Measured value
Temperature
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-200 to +260 °C
Accuracy
±0.2°C; ±0,2 % of the measurement value in a range of +100 to +260 °C
Resolution
0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s)
according to the connected probe
GSM MODEM PARAMETERS
Quad-band
850/900/1800/1900MHz
Compliant to GSM
Phase2/2+
GPRS
GPRS mobile station class B
Class 4
2W @ 850/900MHz
Class 1
1W @ 1800/1900MHz
GENERAL TECHNICAL DATA
Operating temperature
-20 to +60 °C
Channels
4x external temperature probe
Memory
500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval to the internal memory
adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud
from 5 minutes
Interval for measuring and evaluating alarms
adjustable 1 s, 10 s, 1 min
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class
IP20
Dimensions
61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
Weight (including batteries)
approx. 270 g
Warranty
3 years
