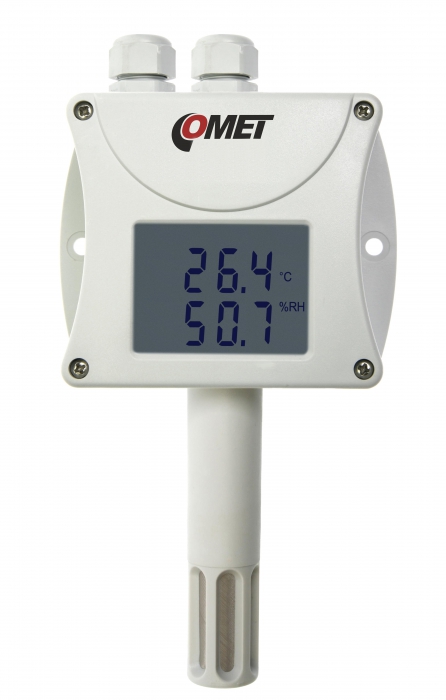

RH+T+Tdp outdoor, indoor probe, RS485 interface

Ambient temperature, relative humidity transmitter. Outdoor, indoor use.

Built-in relative humidity, temperature sensors. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

  • code
    T3411
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +80 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels internal temperature and humidity sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output RS485
Range of humidity sensor temperature compensation all temperature range
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol ModBus RTU, ARION, Advantech ADAM
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors
Dimensions 88,5 x 170 x 39,5 mm; stem length 75 mm
Weight approx. 150 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Sklady

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models

Záruka 3 roky Kalibrační list Teplotní čidlo Teplotní čidlo Teplotní čidlo Tlakové čidlo Rosný bod Dvouřádkový LCD displej Výstup RS232 Výstup RS485

Komunikační protokol MODBUS Komunikační protokol Komunikační protokol


Optional accessories and download

Ac/dc adapter 12V/450mA stabilized, EU

Ac/dc adapter 12V/450mA stabilized, EU

code A1510eu
Ac/dc adapter 12V/450mA stabilized, UK

Ac/dc adapter 12V/450mA stabilized, UK

code A1510uk
Ac/dc adapter 12V/450mA stabilized, US

Ac/dc adapter 12V/450mA stabilized, US

code A1510us

sintered bronze sensor cover

sintered bronze sensor cover

code F0000
PTFE sensor protection, white

PTFE sensor protection, white

code F5300

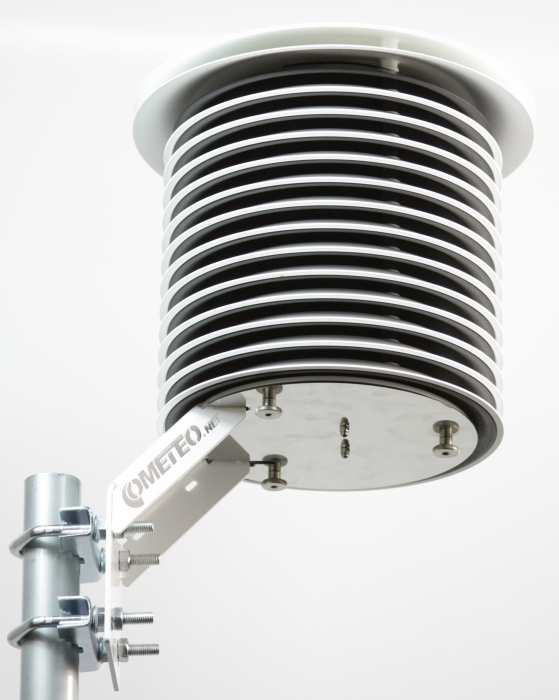

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors
