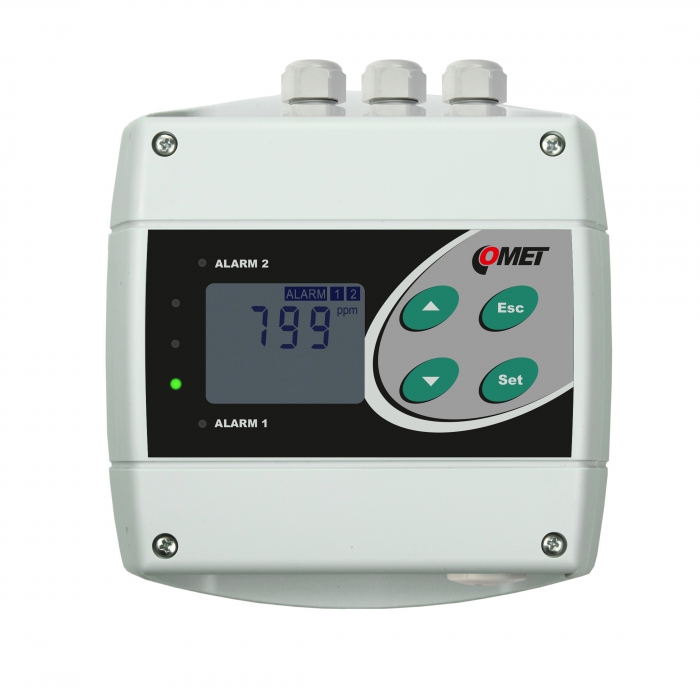

CO2 concentration transmitter with two relay outputs

CO2 concentration transmitter with two relay outputs

CO2 level transmitter with two output relays.

Green LED shines - CO2 concentration 0 to 1000 ppm

Yellow LED shines - CO2 concentration 1001 to 1200 ppm

Red LED shines - CO2 concentration 1201 ppm and more



Optional CO₂ measuring range extension from the standard 0 to 5,000 ppm up to 0 to 10,000 ppm (available at extra cost):

  • Extended measuring range: 0 to 10 000 ppm
  • Accuracy in extended range: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

  • code
    H5024
  • Warranty
    3 years
Add to quote

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 5000 ppm
Accuracy ±(50ppm +3% from reading) at 25°C and 1013hPa
Resolution 1 ppm

RELAY OUTPUTS

Quantity 2
Maximal voltage 50 V
Maximal current 2 A
Maximal power 60 VA

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels internal CO2 sensor
Acoustic alarm from built-in beeper - switchable
Power 9-30 Vdc
Protection class IP30
Dimensions 136 x 150 x 45 mm
Weight approx. 360 g
Warranty 3 years

Optional accessories and download

Ac/dc adapter 12V/450mA stabilized, EU

Ac/dc adapter 12V/450mA stabilized, EU

code A1510eu
Ac/dc adapter 12V/450mA stabilized, UK

Ac/dc adapter 12V/450mA stabilized, UK

code A1510uk
Ac/dc adapter 12V/450mA stabilized, US

Ac/dc adapter 12V/450mA stabilized, US

code A1510us

Accredited CO2 calibration

Accredited CO2 calibration

code SLU015

Surcharge for internal CO2 sensor range adjustment

Surcharge for internal CO2 sensor range adjustment

code SLU113

cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003

Holder for mounting the COMET Transmitter on magnetic surfaces

Holder for mounting the COMET Transmitter on magnetic surfaces

code SP103

Tool for easy connection to WAGO terminals 233 for serial output transmitters

Tool for easy connection to WAGO terminals 233 for serial output transmitters

code SP006
