Compressed air temperature and humidity regulator, cable 2 meters

Compressed air temperature and humidity regulator, cable 2 meters
Compressed air temperature and humidity regulator, cable 2 meters
Compressed air temperature and humidity regulator, cable 2 meters
Compressed air temperature and humidity regulator, cable 2 meters
Compressed air temperature and humidity regulator, cable 2 meters
Compressed air temperature and humidity regulator, cable 2 meters

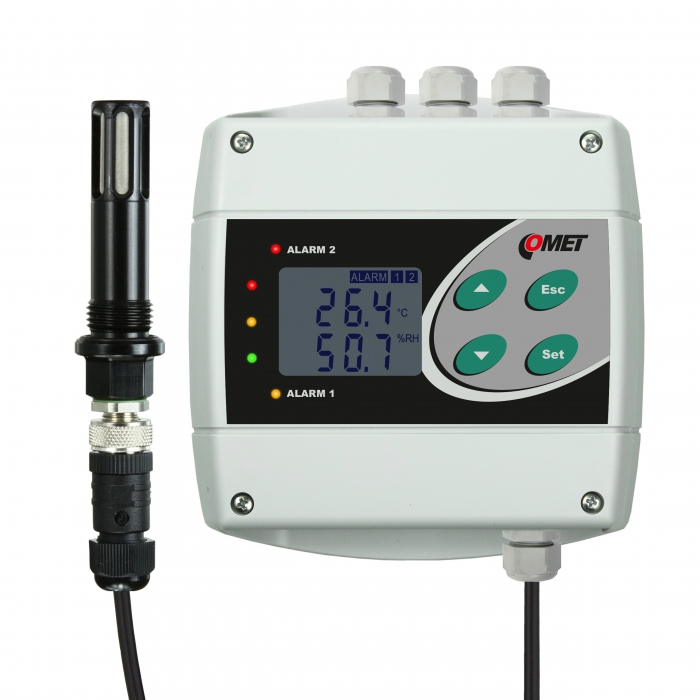

Humidistat, thermostat with two relay outputs. T+RH probe from hard anodized duralumin for compressed air up to 25 bars. Outdoor, indoor use.

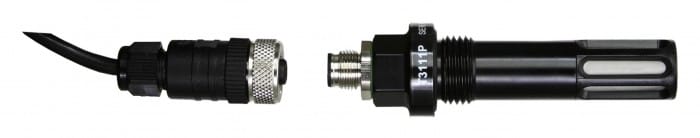

Humidity, temperature probe on a cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

The device is supplied with T+RH probe with 2 meters cable.



  • code
    H3021P-2
  • Warranty
    3 years
Add to quote

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

MEASURING THE MOISTURE OF COMPRESSED AIR

Measuring range up to 25 bars
Air flow velocity up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)

RELAY OUTPUTS

Quantity 2
Maximal voltage 50 V
Maximal current 2 A
Maximal power 60 VA

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x connectable temperature+humidity probe
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Acoustic alarm from built-in beeper - switchable
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors

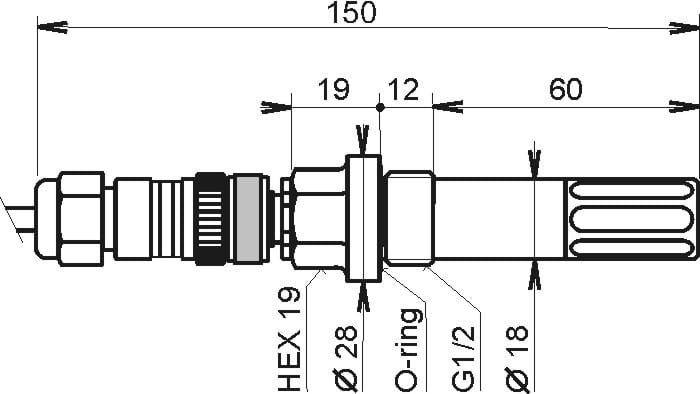

Dimensions 136 x 159 x 45 mm; length/diameter of external probe 88/18 mm
External probe cable length 2 meters
Weight approx. 400 g
Warranty 3 years

Optional accessories and download

Ac/dc adapter 12V/450mA stabilized, EU

Ac/dc adapter 12V/450mA stabilized, EU

code A1510eu
Ac/dc adapter 12V/450mA stabilized, UK

Ac/dc adapter 12V/450mA stabilized, UK

code A1510uk
Ac/dc adapter 12V/450mA stabilized, US

Ac/dc adapter 12V/450mA stabilized, US

code A1510us

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003

cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003

Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009
Holder for mounting the COMET Transmitter on magnetic surfaces

Holder for mounting the COMET Transmitter on magnetic surfaces

code SP103

sintered bronze sensor cover

sintered bronze sensor cover

code F0000
plastic sensor protection with stainless filter (black)

plastic sensor protection with stainless filter (black)

code F5200B
PTFE sensor protection, white

PTFE sensor protection, white

code F5300

Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046
Flow chamber for compressed air measurement up to 25 bars

Flow chamber for compressed air measurement up to 25 bars

code SH-PP
Tool for easy connection to WAGO terminals 233 for serial output transmitters

Tool for easy connection to WAGO terminals 233 for serial output transmitters

code SP006

Software

download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
1.10 MB
download-icon Declaration of Conformity
61.03 KB

Catalogs

download-icon CATALOG - Digital sensors and regulators with serial RS485/RS232 output
7.49 MB
download-icon Catalogue Sheets - COMET Regulators
1.31 MB
