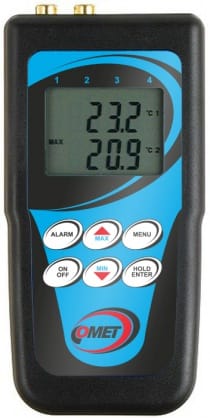

Dual channel thermometer Ni1000/Pt1000

Thermometer is designed for direct measurement and datalogging of temperature into the internal non-volatile memory.

Free PC program enables to transfer recorded data to the personal computer for consequent evaluation. LCD backlight.

Instrument is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.





  • code
    D0221
  • Warranty
    3 years

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +500 °C
Accuracy ±0.3 °C od -50 to +100 °C;
±0.3 % from reading from +100 to +500 °C;
±0.6 % from reading from -200 do -50 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +65 °C
Channels 2x external temperature probe
Acoustic signalization + backlit LCD YES
Memory 16,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Measuring interval and display reading refresh 0.7 to 5 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life approx. 6 months
Protection class IP20
Dimensions (without connectors) 141 x 71 x 27 mm
Weight (including batteries) approx. 150 g
Warranty 3 years

Optional accessories and download

Pt1000TG8/C, temperature probe

Pt1000TG8/C, temperature probe

Temperature range: -80 to 200°C
code SN104C
Pt1000TG8/C, temperature probe, cable 2 m

Pt1000TG8/C, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105C
Pt1000TG8/C, temperature probe, cable 5 m

Pt1000TG8/C, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108C
Pt1000TG8/C, temperature probe, cable 10 m

Pt1000TG8/C, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113C
Pt1000TG7/C, temperature probe

Pt1000TG7/C, temperature probe

Temperature range: -50 to 200°C
code SN164C
Pt1000TG7/C, temperature probe, cable 2 m

Pt1000TG7/C, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165C
Pt1000TG7/C, temperature probe, cable 5 m

Pt1000TG7/C, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166C
Pt1000TG7/C, temperature probe, cable 10 m

Pt1000TG7/C, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167C

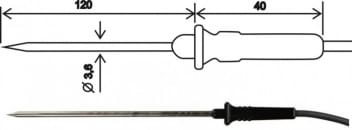

2301-220/C, temperature probe, cable 1 m

2301-220/C, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168C
2021-150/C, temperature probe, cable 1 m

2021-150/C, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169C
PTS350A-2/0, temperature probe, cable 2 m

PTS350A-2/0, temperature probe, cable 2 m

Temperature range: -30 to 130°C
code SN170C
2034-220/C, temperature probe, cable 1 m

2034-220/C, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175C
Ambient temperature probe, 200-80/C

Ambient temperature probe, 200-80/C

Temperature range: -30 to 80°C
code SN177
2061-200/C, temperature probe, cable 1 m

2061-200/C, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178C
2061-200/C, temperature probe, cable 2 m

2061-200/C, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179C
2061-200/C, temperature probe, cable 5 m

2061-200/C, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180C
2061-200/C, temperature probe, cable 10 m

2061-200/C, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181C
PTS350A-5/C, temperature probe, cable 5 m

PTS350A-5/C, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182C
PTS350A-10/C, temperature probe, cable 10 m

PTS350A-10/C, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183C
Pt1000TGL40/C, temperature probe, cable 1 m

Pt1000TGL40/C, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185C
Pt1000TGL40/C, temperature probe, cable 2 m

Pt1000TGL40/C, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186C
Pt1000TGL40/C, temperature probe, cable 5 m

Pt1000TGL40/C, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187C
Pt1000TGL40/C, temperature probe, cable 10 m

Pt1000TGL40/C, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188C
Pt1000TR160/C, temperature probe, cable 1 m

Pt1000TR160/C, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199C
Pt1000TR160/C, temperature probe, cable 2 m

Pt1000TR160/C, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200C
Pt1000TR160/C, temperature probe, cable 5 m

Pt1000TR160/C, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201C
Pt1000TR160/C, temperature probe, cable 10 m

Pt1000TR160/C, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202C
Pt1000TR160/C, temperature probe, cable 15 m

Pt1000TR160/C, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203C
Pt1000TR160/C, temperature probe, cable 20 m

Pt1000TR160/C, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204C
2091-250/C, Stick-in probe, cable 1 m

2091-250/C, Stick-in probe, cable 1 m

Temperature range: -50 to 250°C
code SN210C
2091-250/C, Stick-in probe, cable 2 m

2091-250/C, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211C
2091-250/C, Stick-in probe, cable 5 m

2091-250/C, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212C
2091-250/C, Stick-in probe, cable 10 m

2091-250/C, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213C
Pt1000TR125/C, temperature probe, cable 1 m

Pt1000TR125/C, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239C
Pt1000TR125/C, temperature probe, cable 2 m

Pt1000TR125/C, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240C
Pt1000TR125/C, temperature probe, cable 5 m

Pt1000TR125/C, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241C
Pt1000TR125/C, temperature probe, cable 10 m

Pt1000TR125/C, temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242C
Pt1000TR050S/C, temperature probe, cable 1 m

Pt1000TR050S/C, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Temperature range: -50 to 200°C
code SN252C
Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272C

ac/dc adapter 230Vac to 12Vdc/1A, EU

ac/dc adapter 230Vac to 12Vdc/1A, EU

code A1515eu
ac/dc adapter 230Vac to 12Vdc/1A, UK

ac/dc adapter 230Vac to 12Vdc/1A, UK

code A1515uk
ac/dc adapter 230Vac to 12Vdc/1A, US

ac/dc adapter 230Vac to 12Vdc/1A, US

code A1515us
NiMH rechargeable batt. 9V/200mAh

NiMH rechargeable batt. 9V/200mAh

code A3400

Transducer USB/RS232 complete

Transducer USB/RS232 complete

code MP006
Mini USB cable, 2 meters

Mini USB cable, 2 meters

code MP038
Communication cable for COMMETER Dxxxx

Communication cable for COMMETER Dxxxx

code QLOG015

Mini USB cable, 2 meters

Mini USB cable, 2 meters

code MP038
