WebSensor with PoE - remote CO2 concentration with Ethernet interface

CO2 - carbon dioxide t-line Web sensor. Remote alarm.

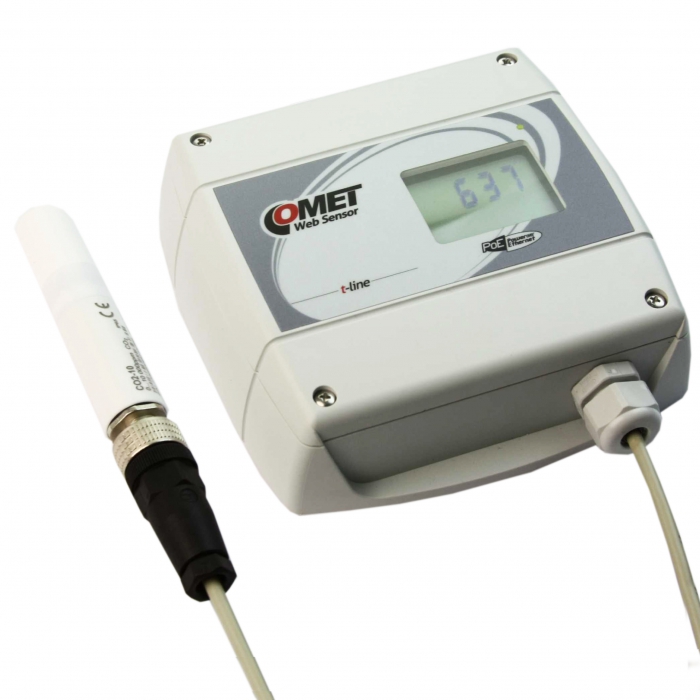

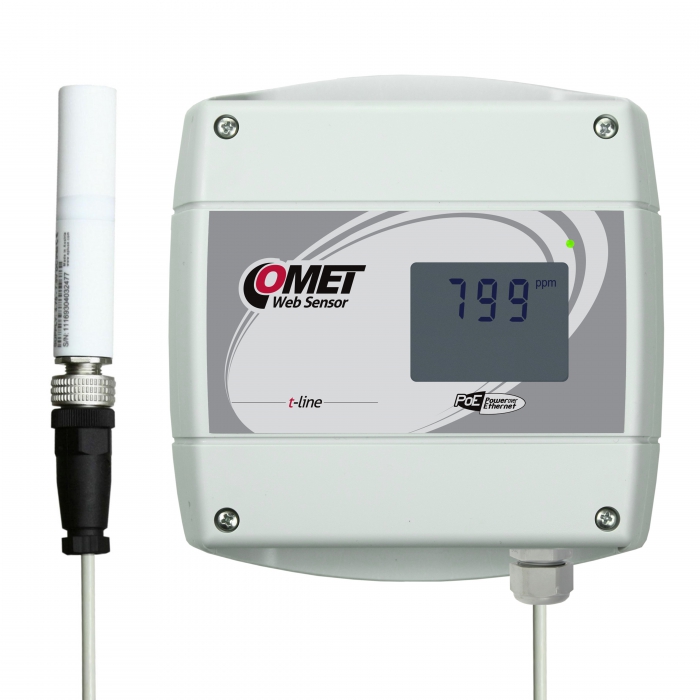

CO2 Web Sensor with PoE function.

A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

The CO2 concentration is shown on the display or signaled by a color LED.

The device is supplied with CO2 probe with 1m cable. Cable lengths 2 or 4 meters available optionally.

Processing and analysis of measured data:



  • code
    T5641
  • Warranty
    3 years

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 10 000 ppm
Accuracy ±(100ppm +5% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels 1x external CO2 sensor
Output Ethernet
Measuring interval 15 s
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog

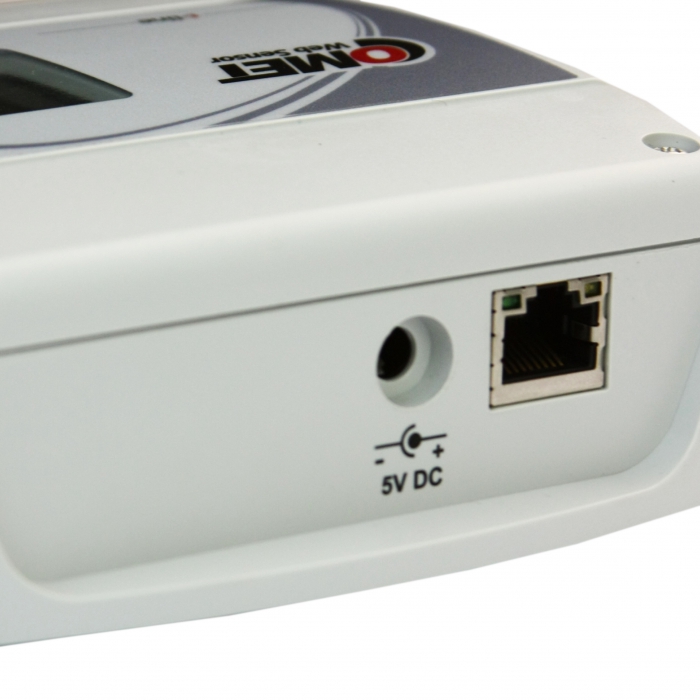

Power Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class IP30 electronics; IP65 sensors
Dimensions 136 x 117 x 45 mm
External probe cable length CO2 1 meter (optionally 2 or 4 meters)
Weight approx. 380 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● communication protocols SNMP, Modbus TCP, SOAP, XML
● webserver to display current and recorded values
● alarm indication via email
● selected models with PoE
● data analysis in COMET Database software

Záruka 3 roky Kalibrační listCOMET Database Teplotní čidlo Teplotní čidlo Teplotní čidlo Tlakové čidlo Rosný bod Dvouřádkový LCD displej Ethernetové rozhraní

Power over Ethernet - PoE WWW server WWW server Historie uložených hodnot Historické grafy E-mail Export historických dat do CSV Modbus TCP protokol Aktuální hodnoty pomocí XML SNMP protokol

SNMP Trap SOAP Protokol Syslog protokol SNTP protokol - časová synchronizace Paměť MIN/MAX hodnot


Optional accessories and download

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

code A1825eu
AC/DC adapter 230Vac to 5Vdc/2.1A, UK

AC/DC adapter 230Vac to 5Vdc/2.1A, UK

code A1825uk
AC/DC adapter 230Vac to 5Vdc/2.1A, US

AC/DC adapter 230Vac to 5Vdc/2.1A, US

code A1825us

Accredited CO2 calibration

Accredited CO2 calibration

code SLU015

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W

Holder for mounting the COMET Transmitter on magnetic surfaces

Holder for mounting the COMET Transmitter on magnetic surfaces

code SP103

COMET Database

COMET Database

code CDB
COMET Cloud

COMET Cloud

code cloud

code cloud_app
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon TSensor (3-5-5-0)
2.90 MB
download-icon Sensor Reader (2-0-8-0)
2.78 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
2.45 MB
download-icon Quick Start Manual
894.58 KB
download-icon Declaration of Conformity
100.81 KB
download-icon How to add WebSensor to COMET Cloud
509.85 KB
download-icon MIB
577.77 KB
download-icon Software development kit (SDK)
97.28 KB

Catalogs

download-icon CATALOG - CO2
5.30 MB
download-icon CATALOG - WebSensor with Ethernet output
4.06 MB
download-icon Catalogue Sheets - COMET Premium WebSensors
2.09 MB
