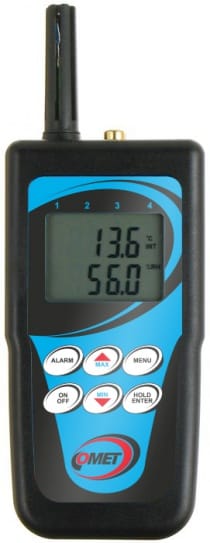

Thermo-hygrometer

Thermometer, hygrometer is designed for measurement and datalogging of temperature, relative humidity into the internal non-volatile memory.

Free PC program enables to transfer recorded data to the computer for evaluation. LCD backlight.

Data logger is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.

Temperature and air relative humidity reading, dew point temperature reading selectable, built-in sensors. A Cinch connector for connection of an external RTD Ni1000/6180ppm temperature probe.

Surface, pointed-tip, insertion and other probes with Cinch connector are available. Indication of temperature difference of external probe and dew point. Audio and visual alarm for the temperature difference e.g. for monitoring of condensation or mould creation.



  • code
    D3631
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -10 to +60 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - external probe Ni1000

Measuring range -50 to +250 °C
Accuracy ±0.2°C from -50 to +100°C
±0.2% from reading from +100 to +250°C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 5 to 95 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -40 to +60 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C
Channels internal temperature and humidity sensor, 1x external temperature probe
Acoustic signalization + backlit LCD YES
Memory 16,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Measuring interval and display reading refresh 0.7 to 5 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life approx. 6 months
Protection class IP20
Dimensions (without connectors) 191 x 71 x 27 mm
Weight (including batteries) approx. 155 g
Warranty 3 years

Optional accessories and download

N1ATG8/C, temperature probe with Ni1000 sensor, cable 1 m

N1ATG8/C, temperature probe with Ni1000 sensor, cable 1 m

code SN001C
N1ATG8/C, temperature probe with Ni1000 sensor, cable 2 m

N1ATG8/C, temperature probe with Ni1000 sensor, cable 2 m

code SN002C
N1ATG8/C, temperature probe with Ni1000 sensor, cable 5 m

N1ATG8/C, temperature probe with Ni1000 sensor, cable 5 m

code SN005C
N1ATG8/C, temperature probe with Ni1000 sensor, cable 15 m

N1ATG8/C, temperature probe with Ni1000 sensor, cable 15 m

code SN015C
N1ATG7/C, temperature probe with Ni1000 sensor, cable 1 m

N1ATG7/C, temperature probe with Ni1000 sensor, cable 1 m

code SN016C
N1ATG7/C, temperature probe with Ni1000 sensor, cable 2 m

N1ATG7/C, temperature probe with Ni1000 sensor, cable 2 m

code SN017C
N1ATG7/C, temperature probe with Ni1000 sensor, cable 5 m

N1ATG7/C, temperature probe with Ni1000 sensor, cable 5 m

code SN020C
N1ATG7/C, temperature probe with Ni1000 sensor, cable 15 m

N1ATG7/C, temperature probe with Ni1000 sensor, cable 15 m

code SN030C
0061-200/C, temperature probe with Ni1000 sensor, cable 1 m

0061-200/C, temperature probe with Ni1000 sensor, cable 1 m

code SN031C
0061-200/C, temperature probe with Ni1000 sensor, cable 2 m

0061-200/C, temperature probe with Ni1000 sensor, cable 2 m

code SN032C
304-220/C, temperature probe with Ni1000 sensor, cable 1 m

304-220/C, temperature probe with Ni1000 sensor, cable 1 m

code SN061C
034-150/C, temperature probe with Ni1000 sensor, cable 1 m

034-150/C, temperature probe with Ni1000 sensor, cable 1 m

code SN076C

ac/dc adapter 230Vac to 12Vdc/1A, EU

ac/dc adapter 230Vac to 12Vdc/1A, EU

code A1515eu
ac/dc adapter 230Vac to 12Vdc/1A, UK

ac/dc adapter 230Vac to 12Vdc/1A, UK

code A1515uk
ac/dc adapter 230Vac to 12Vdc/1A, US

ac/dc adapter 230Vac to 12Vdc/1A, US

code A1515us
NiMH rechargeable batt. 9V/200mAh

NiMH rechargeable batt. 9V/200mAh

code A3400

Transducer USB/RS232 complete

Transducer USB/RS232 complete

code MP006
Mini USB cable, 2 meters

Mini USB cable, 2 meters

code MP038
Communication cable for COMMETER Dxxxx

Communication cable for COMMETER Dxxxx

code QLOG015

Mini USB cable, 2 meters

Mini USB cable, 2 meters

code MP038
