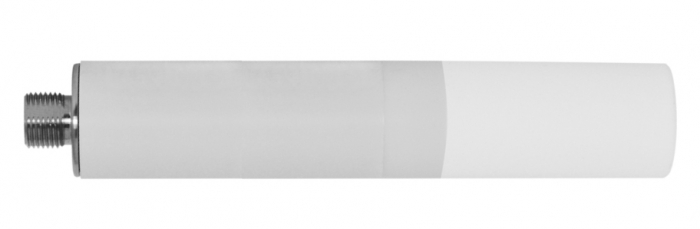

CO2 external probe, range 0-10.000ppm, M12 connector, without cable

CO2 concentration sensor for Sigfox sensor W8861 or Multilogger M1440

A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications.

The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy.

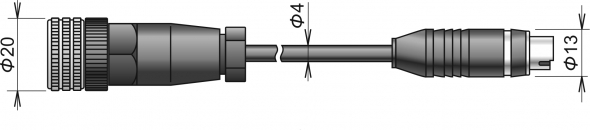

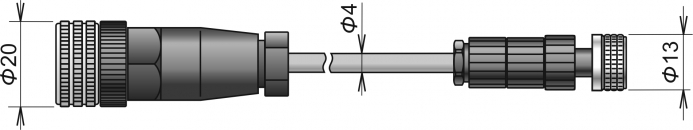

Probe for connection to 1, 2 or 4 meter extension cable - must be ordered.
The CO2 probes use M12 circular connector and cannot be directly connected - the Multilogger M1440 uses a MiniDIN connector and the W8861 uses a M8 circular connector

  • code
    SN220

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 10 000 ppm
Accuracy 100 ppm + 5% of the measured value at 23 °C a 1 013 hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C
Protection class IP65
External probe cable length CO2 1 meter
Connector ELKA
Dimensions (without connectors) 96 x 18 mm
Weight (including batteries) 30 g
Warranty 2 years
