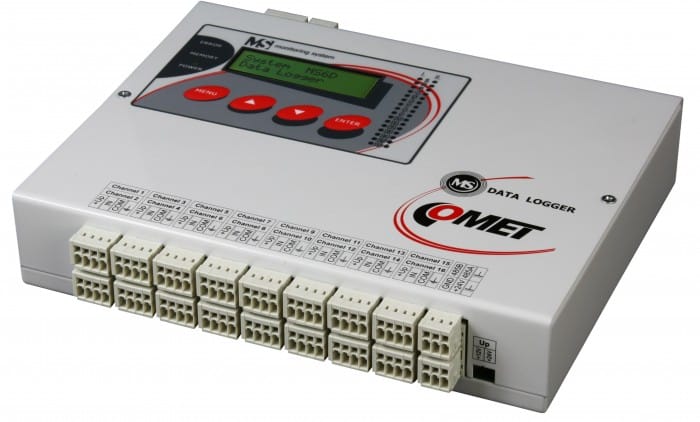

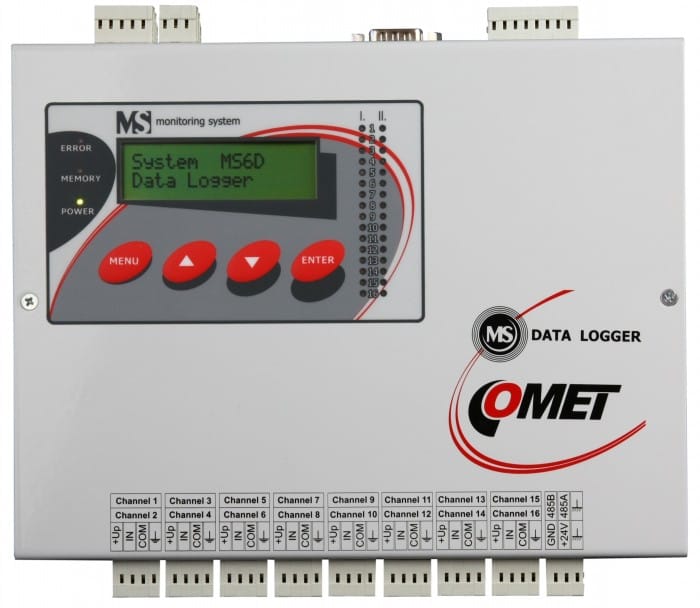

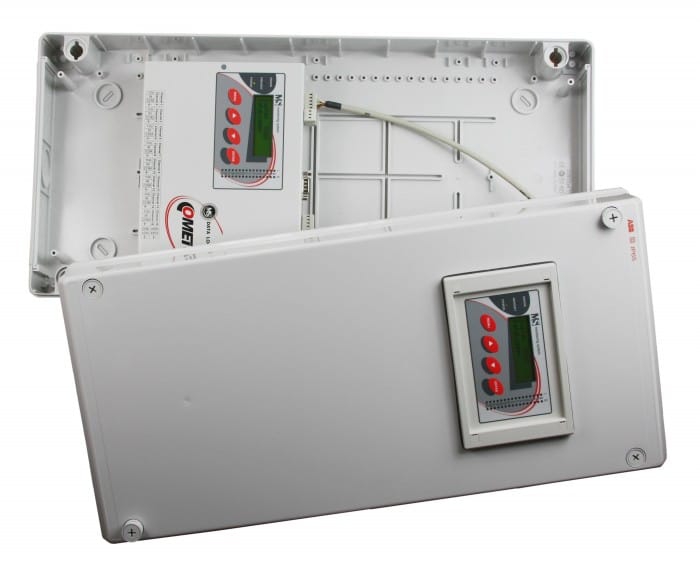

Sixteen Channel Data Logger with Alarms

The complete solution for monitoring of temperature, humidity, pressure, CO2, voltage, current, pulses, events and other signals. Universal configurable inputs and outputs.

Data loggers are designed for measuring, recording, evaluation and subsequent processing of input electrical signals, which are subject to relatively slow changes (> 1s). In conjunction with the appropriate sensors and transducers are suitable for monitoring physical quantities.

The device includes traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO / IEC 17025. The calibration sheet is always loaded as modules.
If the defined required configuration of inputs by, calibration certificate proves calibration inputs according to the required configuration - more than one range for each of the 16 inputs.

Processing and analysis of measured data (with connected optional Ethernet module):

  • code
    MS6D
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
Current
Voltage
Two-state signal
Frequency
Resistance
Event logging

GENERAL TECHNICAL DATA

Operating temperature 0 to +50 °C
Channels 1 to 16 inputs - software configurable
Memory 2MB (up to 480 000 values)
Memory type internal SRAM, backed-up by Lithium battery
Recording interval adjustable individually for all input channels from 1 second to 24 hours
Recording interval noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second, backed-up by Lithium battery
Resolution of the AD converter (analog channels) 16 bits, conversion duration approximately 60ms/channel
Communication speed 9600, 19200, 57600, 115200 Bd, 230400* Bd (* pro USB, Ethernet)
Communication protocol www, XML, SNMP, SOAP, ModbusTCP
Alarm protocols email, SNMP trap, Syslog
Power 24 Vdc
Protection class IP20
Dimensions (including connectors) 215 x 225 x 44 mm
Weight approx. 800 g
Warranty 3 years

Features

Device enables:

  • to measure and process 1 to 16 input signals
  • to acquire autonomous time record of measured values
  • create alarm states
  • to perform other actions based on created alarms (audible, visual indication, controlling of relay outputs, sending SMS message, controlling of telephone dialer, sending of messages via several protocols of the Ethernet interface etc.)
  • to monitor on-line measured values and states
  • independent hysteresis setting, delay (for each channel separately)
  • setting up to four alarm conditions (for each channel separately)

Applications:

Aplikace - Automatizace budov a HVAC

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Zdravotnictví a laboratoře

Registration of temperature, carbon dioxide (CO2) and other critical parameters in the context of GLP or GMP regulations.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Věda a výzkum

Registration and tracking of processes, registration of various parameters.

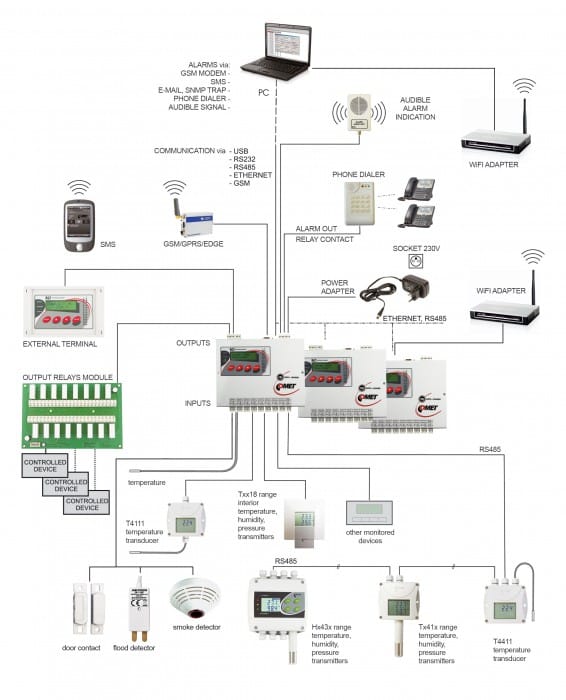

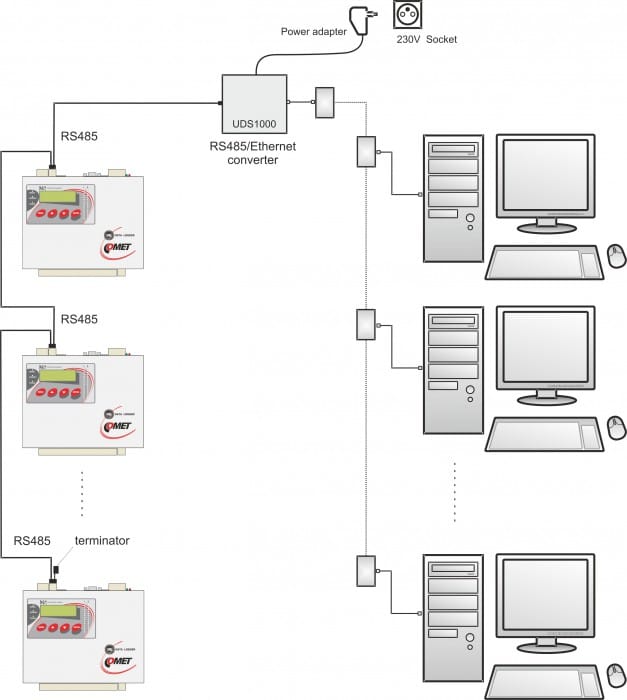

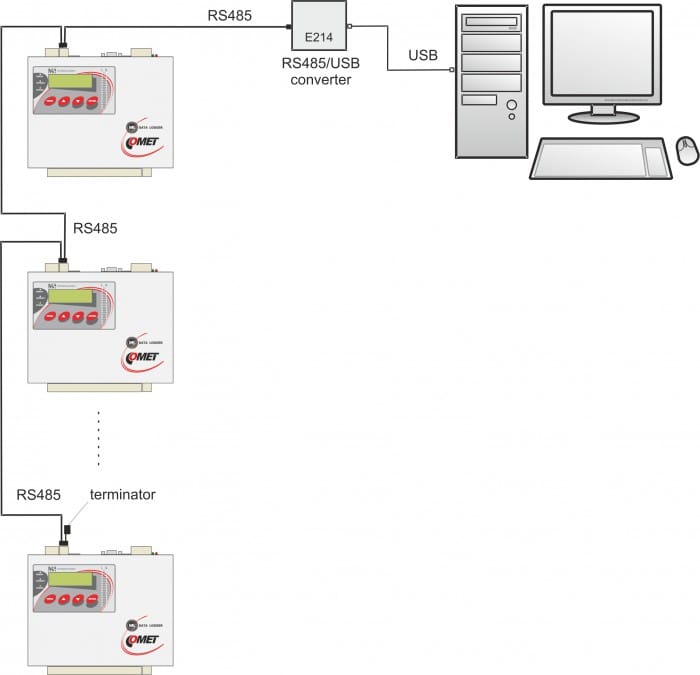

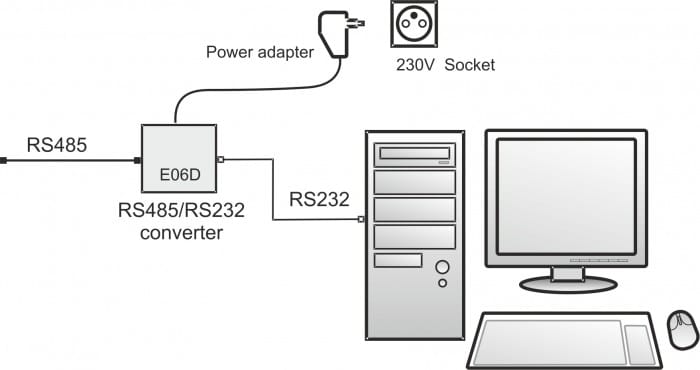

Common connectivity options:

Monitoring system MS may be configured for almost any desired measurement application. Sensors can be wired to datalogger in star-like connection as well as in serial. Combination of both is also possible. The monitoring system MS is characterized by a wide range of communication interfaces such as the RS232, RS485, USB, Ethernet and GSM or GPRS modem. Thanks to Wi-Fi routers several measuring systems MS can be wirelessly connected to a network.

Parameters and measuring ranges of configurable inputs MS6D

The monitoring systems MS6xx is equipped with 16 freely programmable universal inputs. Each of them can be set to the input signal according to the table below. The monitoring system is thus very flexible and offers ease of use. The RS485 input must be ordered separately if you want to use the Modbus or Advantech communication interface.

Measured Values Range Accuracy Note
current DC 4 to20 mA ±0.1% FS (±0.02mA) It is possible to connect pasive sensors (powered by monitoring system) or active sensor with its own power supply. Input resistance about 110 Ohms.
voltage DC -10V to +10V ±0.1% FS (±10 mV) input resistance about 10MOhms
-1V to +1V ±0.1% FS (±1 mV)
-100mV to +100mV ±0.1% FS (±100 uV)
-18mV to +18mV ±0,1% FS (±18 uV)
resistance two-wire resistance measurement 0 to 300 Ohms ±0.1% FS (±0.3 Ohms) measuring current approximately 0.8 mA @ 50ms pulse
0 to 3000 Ohms ±0.1% FS (±3 Ohms) measuring voltage approximately 0.5mA @ 50ms pulse
0 to 10000 Ohms ±0.1% FS (±10 Ohms) measuring current approximately 0.1mA @ 50ms pulse
temperature probes Pt and Ni Ni1000 -50°C to +250°C ±0.2°C (-50°C to 100°C) Ni1000/6180 ppm, two-wire connectioní
±0.2% MH (100°C to 250°C) measuring current approximately 0.5mA @ 50ms pulse
Pt100 -200°C to +600°C ±0.2°C (-200°C to +100°C) Pt100/3850 ppm, two-wire connection
±0.2% MH (+100°C to +600°C) measuring current approximately 0.8mA @ 50ms pulse
Pt1000 -200°C to +600°C ±0.2°C (-200°C to+100°C) Pt1000/3850 ppm, two-wire connection
±0.2% MH (+100°C až +600°C) measuring current about 0.5mA @ 50ms pulse
thermocouple K (NiCr-Ni) -200°C to 1300°C ±0.3% MV + 1.5°C*

linearized, with cold junction compensation, datalogger must be placed in recommendend working position
T (Cu-CuNi) -200°C to 400°C
J (Fe-Co) -200°C to 750°C
S (Pt10%Rh-Pt) 0 to 1700°C
N (NiCrSi-NiSiMg) -200°C to 1300°C
B (Pt30%Rh-Pt) 100°C to 1800°C ±0.3% MV+1.0°C (300°C
to 1800°C)
linearized without cold junction compensation
thermistor NTC with selectable formula up to maximum thermistor
resistance 11 000 ohms
according to used resistance range
(see measurement of resistance)
the same characteristics for all connected thermistors
default settings: R25=2252Ω, R80=282.7Ω
binary signal potential-less contact binary signal input voltage for state "L" (IN-COM) < 0.8 V
input voltage for state "H" (IN-COM) > 2 V
open collector resistance of closed contact for state "L" (IN-COM) < 1 kOhms
voltage levels resistance of closed contact for state "H" (IN-COM) > 10 kOhms
minimum duration for sensing of change: 200ms
RS485 input for serial signal RS485 on request input serves for reading from devices supporting protocol ModBus RTU or Advantech
connected to terminals next to terminals for channel 15 and 16
input can work with 16 devicesi
Galvanically isolated.

Main features:

● software configurable inputs for temperature sensors Pt and Ni, thermocouples and thermistors, voltage and current, two-state events, resistance, sensors with RS485 output
● memory for 500 000 records with automatic downloading to PC
● alarm indication via integrated siren, e-mail, SMS and two-state output to control other devices
● software for data analysis on PC
● communication interface USB, RS232, relays, RS485 (Modbus RTU), ETHERNET (Modbus TCP, SOAP, etc.)

Záruka 3 roky Kalibrační list 16 kanálů Teplota Relativní vlhkost CO2 Tlakové čidlo Rosný bod Dvouřádkový LCD displej Protokoly - Ethernetové rozhraní

Protokoly - Ethernetové rozhraní Protokoly - SNMP Protokoly - Rychlé stahování dat Protokoly - SOAP Protokoly - Syslog Protokoly - E-mail Protokoly - XML soubor Protokoly - Displej ústředny Protokoly - Zabezpečený WEB server Protokoly - SNMP Trap

Protokoly - Databázový systém Protokoly - WWW vzdálené podmínky


Optional accessories and download

Pt1000TG8/0, temperature probe

Pt1000TG8/0, temperature probe

Temperature range: -80 to 200°C
code SN104
Pt1000TG8/0, temperature probe, cable 2 m

Pt1000TG8/0, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105
Pt1000TG8/0, temperature probe, cable 5 m

Pt1000TG8/0, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108
Pt1000TG8/0, temperature probe, cable 10 m

Pt1000TG8/0, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113
2061-250/0 Temperature probe

2061-250/0 Temperature probe

Temperature range: -30 to 250°C
code SN147
2061-250/0 2 m Temperature probe

2061-250/0 2 m Temperature probe

Temperature range: -30 to 250°C
code SN148
2061-250/0 5 m Temperature probe

2061-250/0 5 m Temperature probe

Temperature range: -30 to 250°C
code SN151
2061-250/0  10 m Temperature probe

2061-250/0 10 m Temperature probe

Temperature range: -30 to 250°C
code SN156
Pt1000TG7/0, temperature probe

Pt1000TG7/0, temperature probe

Temperature range: -50 to 200°C
code SN164
Pt1000TG7/0, temperature probe, cable 2 m

Pt1000TG7/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165
Pt1000TG7/0, temperature probe, cable 5 m

Pt1000TG7/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166
Pt1000TG7/0, temperature probe, cable 10 m

Pt1000TG7/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167
2301-220/0, temperature probe, cable 1 m

2301-220/0, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168
2021-150/0, temperature probe, cable 1 m

2021-150/0, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169
PTS350A-2/0, temperature probe, cable 2 m

PTS350A-2/0, temperature probe, cable 2 m

Temperature range: -30 to 130°C
code SN170
2034-220/0, temperature probe, cable 1 m

2034-220/0, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175
2061-200/0, temperature probe, cable 1 m

2061-200/0, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178
2061-200/0, temperature probe, cable 2 m

2061-200/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179
2061-200/0, temperature probe, cable 5 m

2061-200/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180
2061-200/0, temperature probe, cable 10 m

2061-200/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181
PTS350A-5/0, temperature probe, cable 5 m

PTS350A-5/0, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182
PTS350A-10/0, temperature probe, cable 10 m

PTS350A-10/0, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183
Pt1000TGL40/0, temperature probe, cable 1 m

Pt1000TGL40/0, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185
Pt1000TGL40/0, temperature probe, cable 2 m

Pt1000TGL40/0, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186
Pt1000TGL40/0, temperature probe, cable 5 m

Pt1000TGL40/0, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187
Pt1000TGL40/0, temperature probe, cable 10 m

Pt1000TGL40/0, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188
Pt1000TR160/0, temperature probe, cable 1 m

Pt1000TR160/0, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199
Pt1000TR160/0, temperature probe, cable 2 m

Pt1000TR160/0, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200
Pt1000TR160/0, temperature probe, cable 5 m

Pt1000TR160/0, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201
Pt1000TR160/0, temperature probe, cable 10 m

Pt1000TR160/0, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202
Pt1000TR160/0, temperature probe, cable 15 m

Pt1000TR160/0, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203
Pt1000TR160/0, temperature probe, cable 20 m

Pt1000TR160/0, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204
PTS380K/0 temperature sensor with a stainless steel connection head and connector

PTS380K/0 temperature sensor with a stainless steel connection head and connector

Temperature range: -30 to 100°C
code SN205
2091-250/0, Stick-in probe, cable 1 m

2091-250/0, Stick-in probe, cable 1 m

Temperature range: -50 to 250°C
code SN210
2091-250/0, Stick-in probe, cable 2 m

2091-250/0, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211
2091-250/0, Stick-in probe, cable 5 m

2091-250/0, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212
2091-250/0, Stick-in probe, cable 10 m

2091-250/0, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213
2071-030/0, special probe with CINCH connector

2071-030/0, special probe with CINCH connector

Temperature range: -30 to 80°C
code SN214
Pt1000TG68/0, temperature probe, cable 2 m

Pt1000TG68/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN232
Pt1000TG68/0, temperature probe, cable 5 m

Pt1000TG68/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN233
Pt1000TG68/0, temperature probe, cable 10 m

Pt1000TG68/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN234
Pt1000TR125/0, temperature probe, cable 1 m

Pt1000TR125/0, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239
Pt1000TR125/0, temperature probe, cable 2 m

Pt1000TR125/0, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240
Pt1000TR125/0, temperature probe, cable 5 m

Pt1000TR125/0, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241
Pt1000TR125/0, cryogenic temperature probe, cable 10 m

Pt1000TR125/0, cryogenic temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242
Pt1000TR050S/0, temperature probe, cable 1 m

Pt1000TR050S/0, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 2 m

Pt1000TR050S/0, temperature probe, cable 2 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 5 m

Pt1000TR050S/0, temperature probe, cable 5 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector

Ultra thin temperature probe Pt1000TG3/0, without connector

Temperature range: -50 to 200°C
code SN252
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256
Temperature probe Pt1000TR050S/0, without connector, cable 10 meters

Temperature probe Pt1000TR050S/0, without connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Ambient temperature probe, 201-80/C

Ambient temperature probe, 201-80/C

Temperature range: -30 to 80°C
code SN258
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267
Pt1000TR050M/0, temperature probe, cable 1 m

Pt1000TR050M/0, temperature probe, cable 1 m

Temperature range: -50 to 400°C
code SN270
Pt1000TR050M/0, temperature probe, cable 2 m

Pt1000TR050M/0, temperature probe, cable 2 m

Temperature range: -50 to 400°C
code SN271
Pt1000TR050M/0, temperature probe, cable 5 m

Pt1000TR050M/0, temperature probe, cable 5 m

Temperature range: -50 to 400°C
code SN272
Pt1000TR050M/0, temperature probe, cable 10 m

Pt1000TR050M/0, temperature probe, cable 10 m

Temperature range: -50 to 400°C
code SN273

CP500 thermocouple K surface probe

CP500 thermocouple K surface probe

Temperature range: -65 to 500°C
code CP500
CZ550 thermocouple K surface probe

CZ550 thermocouple K surface probe

Temperature range: -65 to 550°C
code CZ550
CZ900 thermocouple K needle probe

CZ900 thermocouple K needle probe

Temperature range: -65 to 1000°C
code CZ900
GD1250 thermocouple "K" wire probe

GD1250 thermocouple "K" wire probe

Temperature range: -65 to 980°C
code GD1250-1/0
GD1250 thermocouple "K" wire probe 2m

GD1250 thermocouple "K" wire probe 2m

Temperature range: -65 to 980°C
code GD1250-2/0
GD1250 thermocouple "K" wire probe 3m

GD1250 thermocouple "K" wire probe 3m

Temperature range: -65 to 980°C
code GD1250-3/0
GD1250 thermocouple "K" wire probe 4m

GD1250 thermocouple "K" wire probe 4m

Temperature range: -65 to 980°C
code GD1250-4/0
GD260 thermocouple "K" wire probe

GD260 thermocouple "K" wire probe

Temperature range: -65 to 260°C
code GD260-1/0
GD260 thermocouple "K" wire probe 2m

GD260 thermocouple "K" wire probe 2m

Temperature range: -65 to 260°C
code GD260-2/0
GD260 thermocouple "K" wire probe 3m

GD260 thermocouple "K" wire probe 3m

Temperature range: -65 to 260°C
code GD260-3/0
GD260 thermocouple "K" wire probe 4m

GD260 thermocouple "K" wire probe 4m

Temperature range: -65 to 260°C
code GD260-4/0
GD700 thermocouple "K" wire probe

GD700 thermocouple "K" wire probe

Temperature range: -65 to 700°C
code GD700-1/0
GD700 thermocouple "K" wire probe 2m

GD700 thermocouple "K" wire probe 2m

Temperature range: -65 to 700°C
code GD700-2/0
GD700 thermocouple "K" wire probe 3m

GD700 thermocouple "K" wire probe 3m

Temperature range: -65 to 700°C
code GD700-3/0
GD700 thermocouple "K" wire probe 4m

GD700 thermocouple "K" wire probe 4m

Temperature range: -65 to 700°C
code GD700-4/0
GT1150 thermocouple "K" insertion probe

GT1150 thermocouple "K" insertion probe

Temperature range: -50 to 1150°C
code GT1150

Extension cable thermocouple K

Extension cable thermocouple K

code SNP03
Extension cable thermocouple K with female connector

Extension cable thermocouple K with female connector

code SNP03/0
Extension cable thermocouple K,2meters

Extension cable thermocouple K,2meters

code SNP06
Extension cable thermocouple K with female connector,2meters

Extension cable thermocouple K with female connector,2meters

code SNP06/0
Extension cable thermocouple K,3meters

Extension cable thermocouple K,3meters

code SNP07
Extension cable thermocouple K with female connector,3meters

Extension cable thermocouple K with female connector,3meters

code SNP07/0
Extension cable thermocouple K,4meters

Extension cable thermocouple K,4meters

code SNP08
Extension cable thermocouple K with female connector,4meters

Extension cable thermocouple K with female connector,4meters

code SNP08/0
Extension cable thermocouple K,5meters

Extension cable thermocouple K,5meters

code SNP09
Extension cable thermocouple K with female connector,5meters

Extension cable thermocouple K with female connector,5meters

code SNP09/0
Extension cable thermocouple K,6meters

Extension cable thermocouple K,6meters

code SNP10
Extension cable thermocouple K with female connector,6meters

Extension cable thermocouple K with female connector,6meters

code SNP10/0
Extension cable thermocouple K,7meters

Extension cable thermocouple K,7meters

code SNP11
Extension cable thermocouple K with female connector,7meters

Extension cable thermocouple K with female connector,7meters

code SNP11/0
Extension cable thermocouple K,8meters

Extension cable thermocouple K,8meters

code SNP12
Extension cable thermocouple K with female connector,8meters

Extension cable thermocouple K with female connector,8meters

code SNP12/0
Extension cable thermocouple K,9meters

Extension cable thermocouple K,9meters

code SNP13
Extension cable thermocouple K with female connector,9meters

Extension cable thermocouple K with female connector,9meters

code SNP13/0
Extension cable thermocouple K,10meters

Extension cable thermocouple K,10meters

code SNP14
Extension cable thermocouple K with female connector,10meters

Extension cable thermocouple K with female connector,10meters

code SNP14/0
Extension cable thermocouple K,11meters

Extension cable thermocouple K,11meters

code SNP15
Extension cable thermocouple K with female connector,11meters

Extension cable thermocouple K with female connector,11meters

code SNP15/0
Extension cable thermocouple K,12meters

Extension cable thermocouple K,12meters

code SNP16
Extension cable thermocouple K with female connector,12meters

Extension cable thermocouple K with female connector,12meters

code SNP16/0
Extension cable thermocouple K,13meters

Extension cable thermocouple K,13meters

code SNP17
Extension cable thermocouple K with female connector,13meters

Extension cable thermocouple K with female connector,13meters

code SNP17/0
Extension cable thermocouple K,14meters

Extension cable thermocouple K,14meters

code SNP18
Extension cable thermocouple K with female connector,14meters

Extension cable thermocouple K with female connector,14meters

code SNP18/0
Extension cable thermocouple K,15meters

Extension cable thermocouple K,15meters

code SNP19
Extension cable thermocouple K with female connector,15meters

Extension cable thermocouple K with female connector,15meters

code SNP19/0

Ac/dc adapter 21V/1A/25W unstabilized

Ac/dc adapter 21V/1A/25W unstabilized

code A1759
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, EU

AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, EU

code A1940eu
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, UK

AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, UK

code A1940uk
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, US

AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, US

code A1940us
Power supply 24Vdc for DIN 35mm rail

Power supply 24Vdc for DIN 35mm rail

code A5948
Uninterruptible power supply MIN-DC-UPS/24VDC/2

Uninterruptible power supply MIN-DC-UPS/24VDC/2

code A6963
Uninterruptible power supply unit AWZ 224

Uninterruptible power supply unit AWZ 224

code A6966
Rechargeable battery module MINI-BAT/24DC/1,3AH

Rechargeable battery module MINI-BAT/24DC/1,3AH

code A7963
Rechargeable hermetic battery 12V/7,2Ah

Rechargeable hermetic battery 12V/7,2Ah

code A7966

KIT-GSM with modem GSM

KIT-GSM with modem GSM

code KIT-GSM-M
Converter RS232/485/422 to 10/100Base-TX with ac/dc adapter for MS

Converter RS232/485/422 to 10/100Base-TX with ac/dc adapter for MS

code MP023
Ethernet communication port (internal) for MS6R, MS6D

Ethernet communication port (internal) for MS6R, MS6D

code MP042
Plug&Play LTE router for data communication between MS and COMET Cloud

Plug&Play LTE router for data communication between MS and COMET Cloud

code MP056
Galvanically isolated input for MS data loggers for serial RS485 signal

Galvanically isolated input for MS data loggers for serial RS485 signal

code RS485IN

Holder for data logger mounting to DIN 35mm rail

Holder for data logger mounting to DIN 35mm rail

code MP012
Universal holders for data logger and output relays module

Universal holders for data logger and output relays module

code MP013
Side covers for cables

Side covers for cables

code MP027

COMET Database

COMET Database

code CDB
COMET Cloud

COMET Cloud

code cloud

code cloud_app
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Software for COMET Monitoring Systems

Software for COMET Monitoring Systems

code SWR003

Universal holders for data logger and output relays module

Universal holders for data logger and output relays module

code MP013
Communication cable for ext. terminal or output relays module 60cm

Communication cable for ext. terminal or output relays module 60cm

code MP017
Communication cable for ext. terminal or output relays module 10m

Communication cable for ext. terminal or output relays module 10m

code MP017-10
Communication cable for ext. terminal or output relays module 5m

Communication cable for ext. terminal or output relays module 5m

code MP017-5
Output relays module

Output relays module

code MP018
Holders for output relays module mounting to DIN 35mm rail

Holders for output relays module mounting to DIN 35mm rail

code MP019
DIN rail 35 mm for output relays module with screws

DIN rail 35 mm for output relays module with screws

code MP020

Terminal with display for MS55, MS6

Terminal with display for MS55, MS6

code MP016
Communication cable for ext. terminal or output relays module 60cm

Communication cable for ext. terminal or output relays module 60cm

code MP017
Communication cable for ext. terminal or output relays module 10m

Communication cable for ext. terminal or output relays module 10m

code MP017-10
Communication cable for ext. terminal or output relays module 5m

Communication cable for ext. terminal or output relays module 5m

code MP017-5
External terminal for MS6x and MS55D dataloggers with housing and cable

External terminal for MS6x and MS55D dataloggers with housing and cable

code MP032

Watertight case with wall holders for MS logger, no cutout in the lid

Watertight case with wall holders for MS logger, no cutout in the lid

code MP033
MS6D datalogger in IP54 protection case with connected terminal at the lid

MS6D datalogger in IP54 protection case with connected terminal at the lid

code MP048

Motion detector JS20

Motion detector JS20

code JS20
The LD-12 flood detector

The LD-12 flood detector

code LD12
Magnetic door contact SA-200-A

Magnetic door contact SA-200-A

code SA200A
Magnetic door contact with cable length 10m

Magnetic door contact with cable length 10m

code SA200A-10
Magnetic door contact with cable length 15m

Magnetic door contact with cable length 15m

code SA200A-15
Magnetic door contact with cable length 2m

Magnetic door contact with cable length 2m

code SA200A-2
Magnetic door contact with cable length 20m

Magnetic door contact with cable length 20m

code SA200A-20
Magnetic door contact with cable length 30m

Magnetic door contact with cable length 30m

code SA200A-30
Magnetic door contact with cable length 5m

Magnetic door contact with cable length 5m

code SA200A-5
The optical smoke detector SD-283ST

The optical smoke detector SD-283ST

code SD280
Power detector SP008

Power detector SP008

code SP008

External audio unit for MSxx and Multilogger

External audio unit for MSxx and Multilogger

code MP026
Screwdriver for WAGO terminals 3.5mm

Screwdriver for WAGO terminals 3.5mm

code MP031

Software

download-icon SWR003 (MSPlus 4.0.44.0 dbapi 21.1)
61.49 MB
download-icon Comet Database One Click Installer (21.1-IIi)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual - basic
2.36 MB
download-icon Instruction Manual - appendix
2.68 MB
download-icon Declaration of Conformity
61.42 KB
download-icon MIB
575.32 KB
download-icon Configurable inputs for MS6xx
581.65 KB
download-icon Monitoring System setup wizard step by step - powerpoint
3.84 MB

Catalogs

download-icon CATALOG - Monitoring Systems
3.28 MB

Related products

COMET Database

COMET Database

code CDB
Software for COMET Monitoring Systems

Software for COMET Monitoring Systems

code SWR003
Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

code M1140

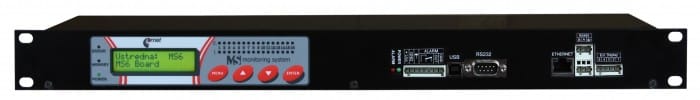

Sixteen Channel Data Logger for 19" Rack with Alarms

Sixteen Channel Data Logger for 19" Rack with Alarms

code MS6-Rack

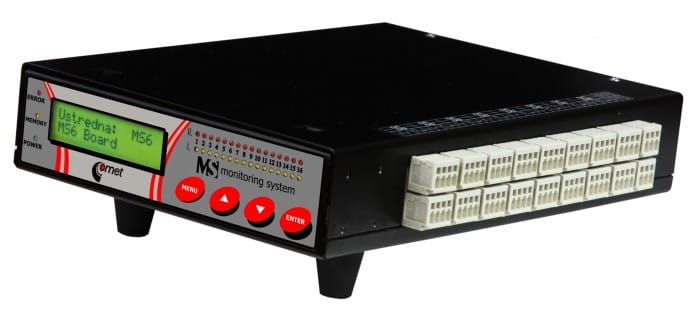

Sixteen Channel Data Logger with Alarms

Sixteen Channel Data Logger with Alarms

code MS6R
Sixteen Channel Data Logger with Alarms

Sixteen Channel Data Logger with Alarms

code MS55D
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

MS6 Demo
