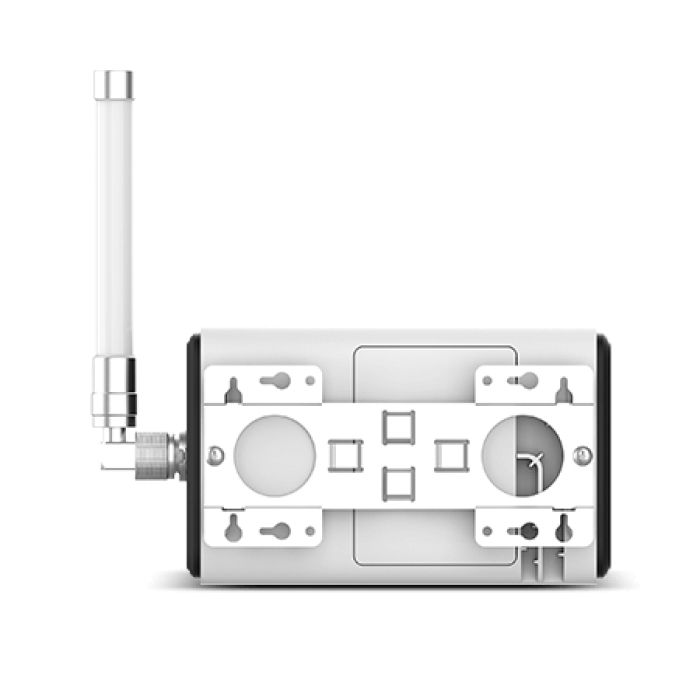

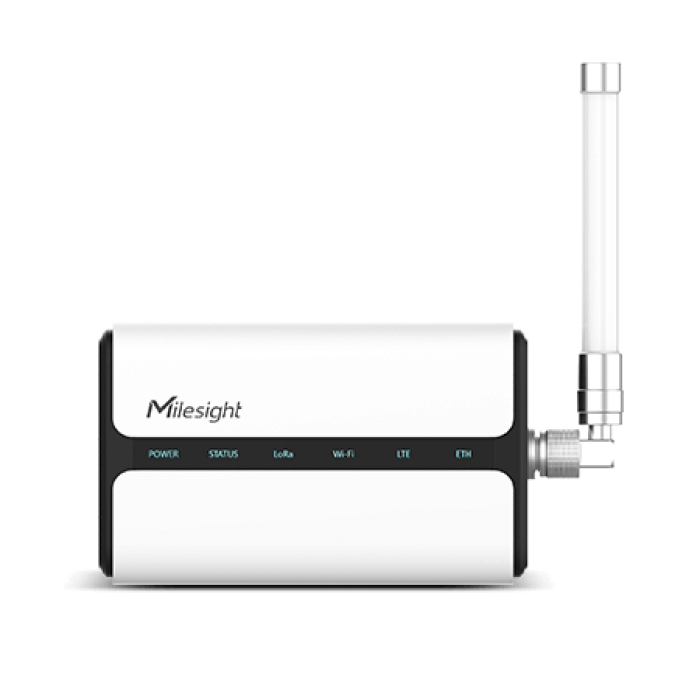

LoRaWAN® Gateway, Milesight UG65

The gateway serves as an access point for the local LoRaWAN® network and is designed to connect the COMET Wx9xx series of wireless sensors to the COMET Cloud.
After installation, it immediately begins receiving and sending data messages to and from the LoRaWAN® network via its antenna.
This third-party product is supplied with all the original accessories required for power supply and installation.

code

SP043

Add to quote

Technical data

GENERAL PARAMETERS

LoRaWAN® network frequency band EU863-870

Maximum power consumption 4.2 W

Ethernet 10/100/1000 Mbps

LoRa antenna External, directly on the connector

Modem LTE, 4G (miniSIM slot)

POWER

Input voltage of DC connector 9-24 V

PoE in input Voltage PD type, according to IEEE 802.3 af

GENERAL TECHNICAL DATA

Operating temperature -40°C to +70°C

Protection class IP65

Dimensions 180 x 110 x 56.5 mm (antenna length 190 mm)

LoRaWAN® Gateway, Milesight UG65

Technical data

GENERAL PARAMETERS

POWER

GENERAL TECHNICAL DATA
