COMETEO Universal Multi-plate Meteorological Shield for Weather Sensors, Naturally Ventilated

Newly developed multiplate meteorological screen for weather transmitters. Professional radiation shield is designed for the protection of any meteo sensor with a diameter of 13 to 18 mm.

Multiplate radiation shield is used to protect sensors and provides more accurate measurement results. The shield minimizes radiation reaching the sensor, minimizes radiation absorbed by the shield and maximizes ambient air flow around the sensor. The enlarged top plate „cap“ is 210mm in diameter and designed to provide shade for high solar angles for lower plates.

"Not only radiation shield, but the complete COMETEO system minimizing negative effects"



Works with COMET instruments - see OPTIONAL ACCESSORIES

Request your free COMETEO shield for six months evaluation. If you are satisfied after testing you can buy the shield, otherwise return it.



Unique optimized design for best performance:

  • advanced weather protection by maximised top cover area
  • passively ventilated, requires no power
  • 13 to 18 mm probe diameter

Optimized shield design minimizes radiation reaching the sensor, minimizes radiation absorbed by the shield and maximizes ambient air flow around the sensor.



  • code
    F8110
  • Warranty
    2 years

Technical data

Measured value

Temperature
Relative humidity
CO2
Atmospheric pressure

GENERAL TECHNICAL DATA

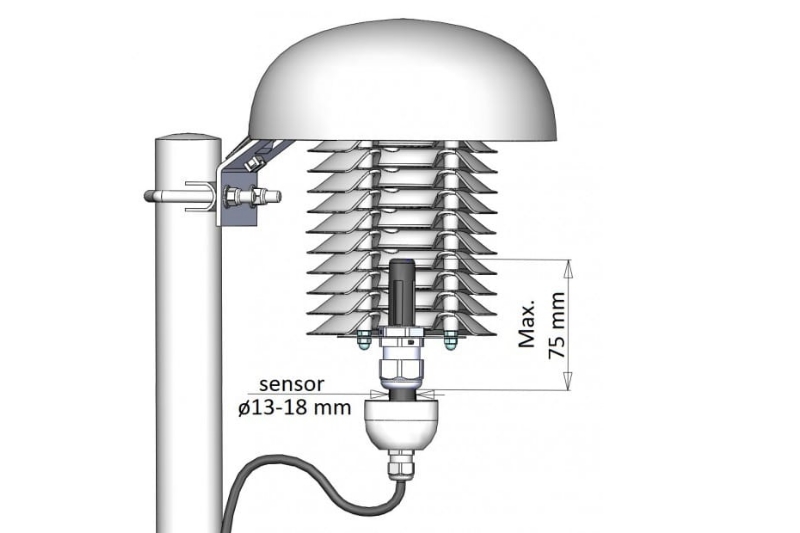

Diameter of the installed probe 13 to 18 mm
Temperature operating range -30 to +80 °C
Relative humidity operating range 0 to 100 %RH
Storage temperature range -30 to +80 °C
Storage relative humidity range 0 to 100 %RH (no condensation)

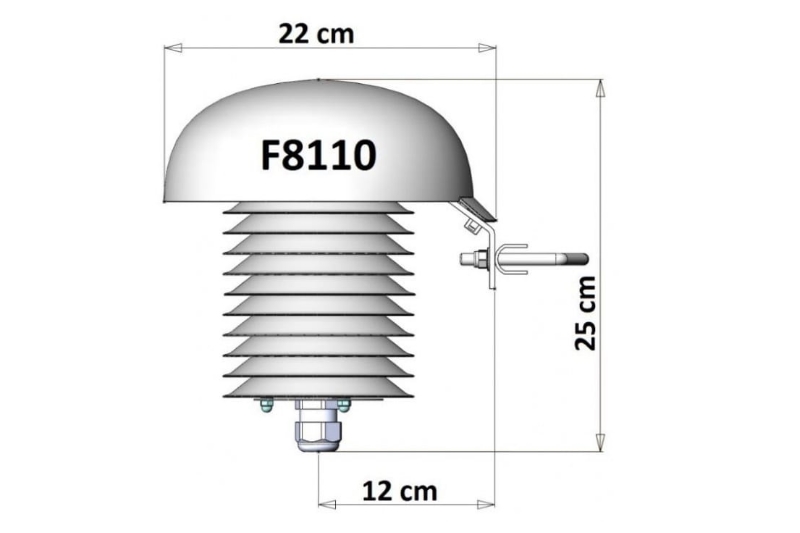

Dimension 220 mm (diameter), 250 mm (height)
Weight approx. 900 g
Material ASA - UV stabilized, antistatic
Warranty 3 years

Features

F8110
COMETEO is made of ASA plastic which is resistance to mechanical damage and UV radiation. ABS plastic is very stable over time.
F8110
Transmitter is entirely protected inside the radiation shield by maximized top cover area which provides advanced weather protection.

Applications:

Applications - Metrology

Meteorology - COMET sensors together with COMET radiation shields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Applications - Snow Guns

Snow Guns

Application - HVAC

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Optional accessories

Sensors

Industrial temperature and humidity transmitter - RS232 output, cable 1 meter

Industrial temperature and humidity transmitter - RS232 output, cable 1 meter

code T3319
Web sensor - remote thermometer hygrometer with Ethernet interface, cable 1 meter

Web sensor - remote thermometer hygrometer with Ethernet interface, cable 1 meter

code T3511
Industrial temperature, humidity, bar. pressure transmitter - RS232 output, cable 1 meter

Industrial temperature, humidity, bar. pressure transmitter - RS232 output, cable 1 meter

code T7311
Industrial temperature, humidity, bar. pressure transmitter - RS485 output, cable 1 meter

Industrial temperature, humidity, bar. pressure transmitter - RS485 output, cable 1 meter

code T7411
Web Sensor - remote thermometer hygrometer barometer with Ethernet interface, cable 1 meter

Web Sensor - remote thermometer hygrometer barometer with Ethernet interface, cable 1 meter

code T7511
Temperature and humidity duct probe with 0-10V output

Temperature and humidity duct probe with 0-10V output

code T0213D
Temperature and humidity duct probe with 4-20mA output

Temperature and humidity duct probe with 4-20mA output

code T3113D
Duct mount temperature probe 0 to +150°C / 4 to 20mA, IP65

Duct mount temperature probe 0 to +150°C / 4 to 20mA, IP65

code P0132
Temperature and humidity duct mount transmitter with RS485 output

Temperature and humidity duct mount transmitter with RS485 output

code T3413D
Web Sensor with PoE, duct mount - remote thermometer hygrometer barometer with Ethernet interface

Web Sensor with PoE, duct mount - remote thermometer hygrometer barometer with Ethernet interface

code T7613D
Temperature and humidity regulator, cable 1 meter

Temperature and humidity regulator, cable 1 meter

code H3021
Temperature and humidity regulator with 230Vac/8A relays, cable 1 meter

Temperature and humidity regulator with 230Vac/8A relays, cable 1 meter

code H3061
Thermometer hygrometer with Ethernet interface and relays, cable 1 meter

Thermometer hygrometer with Ethernet interface and relays, cable 1 meter

code H3531
Thermometer hygrometer barometer with Ethernet interface and relays, cable 1 meter

Thermometer hygrometer barometer with Ethernet interface and relays, cable 1 meter

code H7531
Temperature and humidity regulator with RS232 output, cable 1 meter

Temperature and humidity regulator with RS232 output, cable 1 meter

code H3331
Temperature and humidity regulator with RS485 output, cable 1 meter

Temperature and humidity regulator with RS485 output, cable 1 meter

code H3431

Dataloggers

GSM Temperature data logger for four external probes with built-in modem

GSM Temperature data logger for four external probes with built-in modem

code U0141M
GSM temperature data logger for two external probes and two two-state inputs with modem

GSM temperature data logger for two external probes and two two-state inputs with modem

code U0843M
GSM temperature and humidity data logger for external probe with built-in modem

GSM temperature and humidity data logger for external probe with built-in modem

code U3121M
Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

code M1140
Multilogger - thermo-hygro-CO2 meter with four inputs, up to 50 000ppm CO2

Multilogger - thermo-hygro-CO2 meter with four inputs, up to 50 000ppm CO2

code M1440

Temperature probes

Pt1000TR160/0 temperature probe for COMETEO Solar Shields F8x00, cable 25 cm

Pt1000TR160/0 temperature probe for COMETEO Solar Shields F8x00, cable 25 cm

Temperature range: -30 to 80°C
code SN250V
