COMETEO Multi-Plate Radiation Shield for Weather Sensors, Actively ventilated - built-in fan requires 12Vdc voltage

Newly developed motorized meteorological screen for humidity and temperature transmitters. Professional active solar radiation shield for meteo sensors.

Multiplate radiation shield is used to protect weather sensors and provides more accurate measurement results. The shield minimizes radiation reaching the sensor, minimizes radiation absorbed by the shield and maximizes ambient air flow around the sensor. The enlarged top plate „cap“ is 210mm in diameter and designed to provide shade for high solar angles for lower plates and also for full protection of measuring device placed underneath.

Optimized design combines all excelent features of multi-plate shield with effective active ventilation by means of a high performance fan powered from external 12Vdc voltage. The unique design allows the use of a low energy fan that minimizes potential sensor's parasitic heating from the fan motor.

The most important advantage of artificial ventilation of the shield is the reduction of the daytime radiation error especially in calm days with low winds.



"Not only radiation shield, but the complete COMETEO system minimizing negative effects"

Works with COMET instruments - see OPTIONAL ACCESSORIES


Request your free COMETEO shield for six months evaluation.
If you are satisfied after testing you can buy the shield, otherwise return it.



  • code
    F8200
  • Warranty
    2 years

Technical data

Measured value

Temperature
Relative humidity
CO2
Atmospheric pressure

GENERAL TECHNICAL DATA

Supply voltage 12 Vdc
Power consumption of fan 0.6 W
Pulse output 2 pulse / rev. (max. current of output is < 5 mA, the pulse output is not protected against short circuits)
Temperature operating range -30 to +80 °C
Relative humidity operating range 0 to 100 %RH
Storage temperature range -30 to +80 °C
Storage relative humidity range 0 to 100 %RH (no condensation)

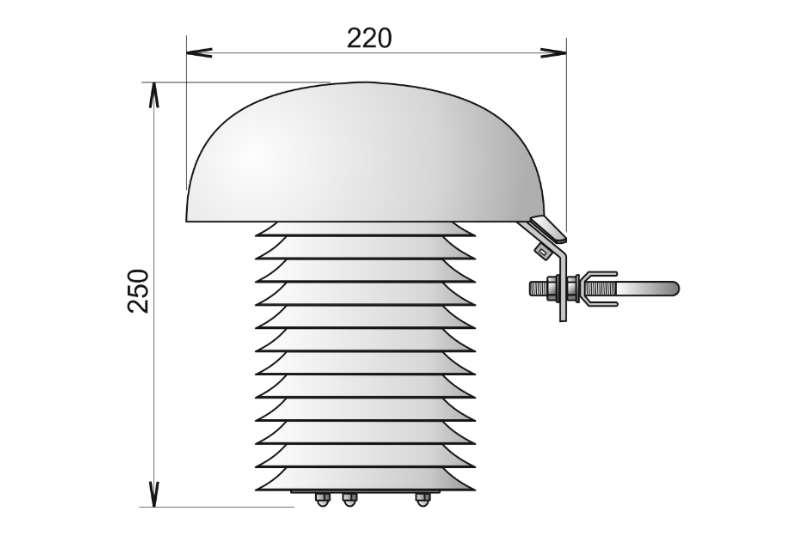

Dimension 220 mm (diameter), 250 mm (height)
Weight approx. 900 g
Material ASA - UV stabilized, antistatic
Warranty 3 years

Features

F8200
COMETEO is made of ASA plastic which is resistance to mechanical damage and UV radiation. ABS plastic is very stable over time.
F8200
Transmitter is entirely protected inside the radiation shield by maximized top cover area which provides advanced weather protection.

Applications:

Applications - Metrology

Meteorology - COMET sensors together with COMET radiation shields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Applications - Snow Guns

Snow Guns

Application - HVAC

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
