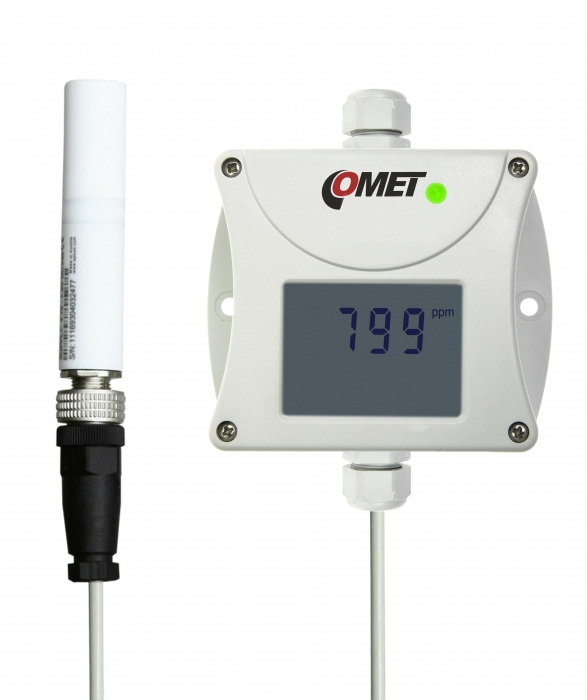

CO2 concentration transmitter with 0-10V output, external carbon dioxide probe, 1m cable

CO2 - carbon dioxide level sensor.

carbon dioxideCO2 concentration transmitter with 0-10V output is built in a durable watertight case. Output range is user adjustable. Large dual line LCD is an advantage. Display is possible to switch off.

The device is supplied with CO2 probe with 1m cable. Cable lengths 2 or 4 meters available optionally.

Green LED shines - CO2 concentration 0 to 1000 ppm

Yellow LED shines - CO2 concentration 1001 to 1200 ppm

Red LED shines - CO2 concentration 1201 ppm and more



  • code
    T5241
  • Warranty
    3 years

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 10 000 ppm
Accuracy ±(100ppm +5% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x external CO2 sensor
Output 0 - 10 V
Configuration of output user adjustable from PC; measured range + value
Power 15-30 Vdc; 24 Vac
Protection class IP65
Dimensions 88,5 x 94 x 39,5 mm
External probe cable length CO2 1 meter (optionally 2 or meters)
Weight approx. 250 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of sterile environments and storage areas at temperatures up to -200 °C. COMET sensors can serve well even in these demanding and wide range of applications focusing on monitoring temperature, CO2 and other critical parameters in the context of GLP and GMP regulations.

Aplikace - Průmysl

Industry and manufacturing - such as the chemical, oil, paper and steel industries - is distinguished by its capital demands. A competition across the market is still growing and creates additional pressure on the prices. Our company has a good understanding of this situation and thus provides very reliable and precise products for a very competitive price.

Aplikace - Sklady

Food industry - wherever there is a need to monitor critical variables in relation to HACCP regulations, COMET sensors and transducers may be used. Along with other COMET products such monitoring systems MS6 and MS55D, it is possible to create a comprehensive system for collecting, recording, analyzing and alerting.

Aplikace - Sklady

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Aplikace - Sklady

Potentially explosive environments - Selected devices comply with the requirements of the ATEX directive for use in potentially explosive environments (zone 2).

Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● ATEX design for potentially explosive atmospheres (zone 2) on selected models
● relays output 250Vac / 8A or 50 V on selected models

3 years warranty Traceable calibration certificate
Temperature Relative humidity CO2 Barometric pressure Dew point LCD 4-20mA output 0-10V output ATEX
